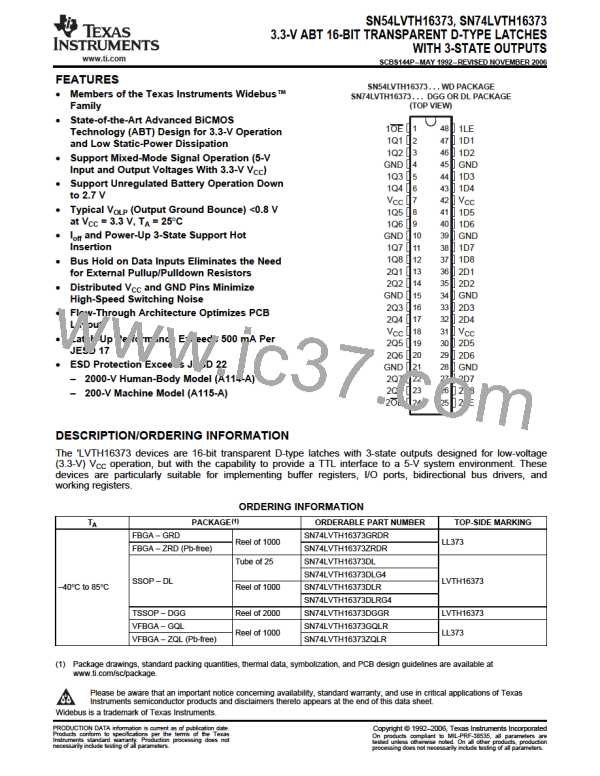

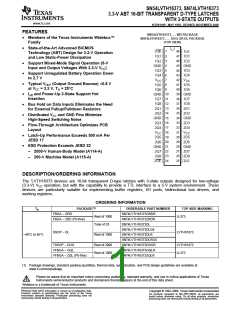

SN54LVTH16373, SN74LVTH16373
3.3-V ABT 16-BIT TRANSPARENT D-TYPE LATCHES
WITH 3-STATE OUTPUTS
www.ti.com
SCBS144PMAY 1992REVISED NOVEMBER 2006
FEATURES
SN54LVTH16373 . . . WD PACKAGE
Members of the Texas Instruments Widebus™
Family
SN74LVTH16373 . . . DGG OR DL PACKAGE
(TOP VIEW)
State-of-the-Art Advanced BiCMOS
Technology (ABT) Design for 3.3-V Operation
and Low Static-Power Dissipation
1
48
47
46
45
44
43
42
41
40
39
38
37
36
35
34
33
32
31
30
29
28
27
26
25
1OE
1Q1
1Q2
GND
1Q3
1Q4
1LE
1D1
1D2
GND
1D3
1D4
2
3
Support Mixed-Mode Signal Operation (5-V
4
Input and Output Voltages With 3.3-V VCC
)
5
Support Unregulated Battery Operation Down
to 2.7 V
6
7
V
CC
V
CC
Typical VOLP (Output Ground Bounce) <0.8 V
at VCC = 3.3 V, TA = 25°C
8
1Q5
1Q6
GND
1Q7
1Q8
2Q1
2Q2
GND
2Q3
2Q4
1D5
1D6
GND
1D7
1D8
2D1
2D2
GND
2D3
2D4
9
Ioff and Power-Up 3-State Support Hot
Insertion
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
Bus Hold on Data Inputs Eliminates the Need
for External Pullup/Pulldown Resistors
Distributed VCC and GND Pins Minimize
High-Speed Switching Noise
Flow-Through Architecture Optimizes PCB
Layout
V
CC
V
CC
Latch-Up Performance Exceeds 500 mA Per
JESD 17
2Q5
2Q6
GND
2Q7
2Q8
2OE
2D5
2D6
GND
2D7
2D8
2LE
ESD Protection Exceeds JESD 22
2000-V Human-Body Model (A114-A)
200-V Machine Model (A115-A)
DESCRIPTION/ORDERING INFORMATION
The 'LVTH16373 devices are 16-bit transparent D-type latches with 3-state outputs designed for low-voltage
(3.3-V) VCC operation, but with the capability to provide a TTL interface to a 5-V system environment. These
devices are particularly suitable for implementing buffer registers, I/O ports, bidirectional bus drivers, and
working registers.
ORDERING INFORMATION
TA
PACKAGE(1)
ORDERABLE PART NUMBER
SN74LVTH16373GRDR
SN74LVTH16373ZRDR
SN74LVTH16373DL
TOP-SIDE MARKING
LL373
FBGA – GRD
Reel of 1000
Tube of 25
FBGA – ZRD (Pb-free)
SN74LVTH16373DLG4
SN74LVTH16373DLR
SSOP – DL
LVTH16373
–40°C to 85°C
Reel of 1000
SN74LVTH16373DLRG4
SN74LVTH16373DGGR
SN74LVTH16373GQLR
SN74LVTH16373ZQLR
TSSOP – DGG
Reel of 2000
Reel of 1000
LVTH16373
LL373
VFBGA – GQL
VFBGA – ZQL (Pb-free)
(1) Package drawings, standard packing quantities, thermal data, symbolization, and PCB design guidelines are available at
www.ti.com/sc/package.
Please be aware that an important notice concerning availability, standard warranty, and use in critical applications of Texas
Instruments semiconductor products and disclaimers thereto appears at the end of this data sheet.
Widebus is a trademark of Texas Instruments.
PRODUCTION DATA information is current as of publication date.
Copyright © 1992–2006, Texas Instruments Incorporated
Products conform to specifications per the terms of the Texas
On products compliant to MIL-PRF-38535, all parameters are
Instruments standard warranty. Production processing does not
tested unless otherwise noted. On all other products, production
necessarily include testing of all parameters.
processing does not necessarily include testing of all parameters.
