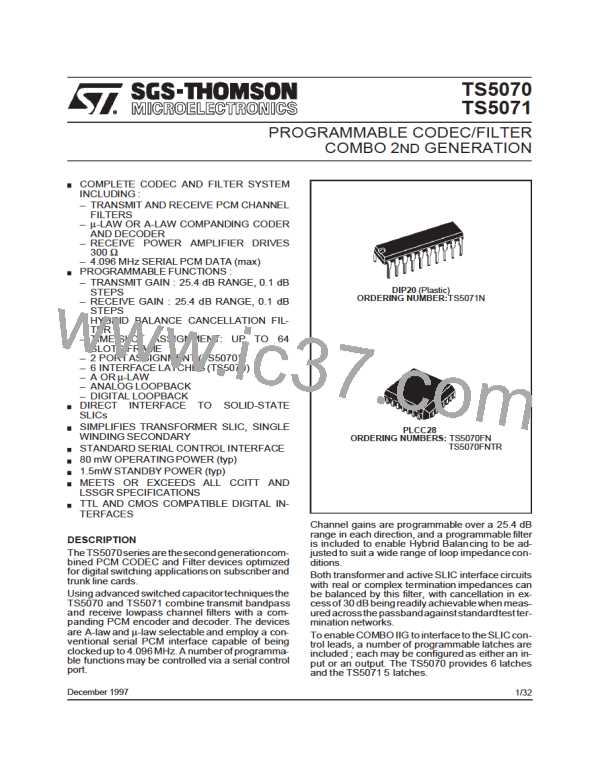

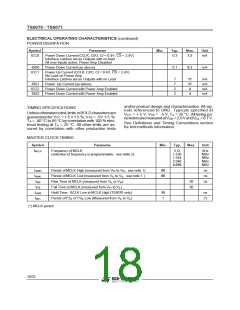

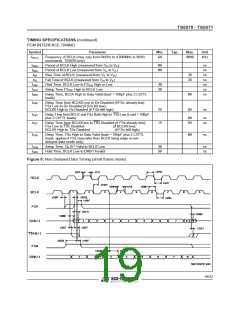

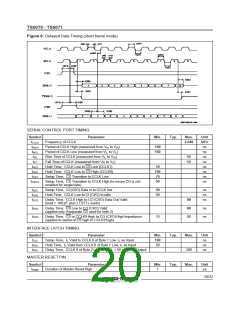

TS5070 - TS5071
f = 1031.25 Hz, VFXI = 0 dBm0, DR0 or DR1 = 0
dBm0PCMcode, HybridBalancefilterdisabled.All
other limits are assured by correlation with other
production tests and/or product design and char-
acterization. All signals referenced to GND. dBm
levels are into 600 ohms. Typicals specified at
VCC = + 5 V, VSS = -5 V, TA = 25 °C.

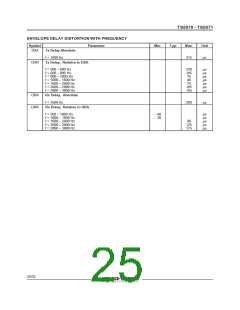

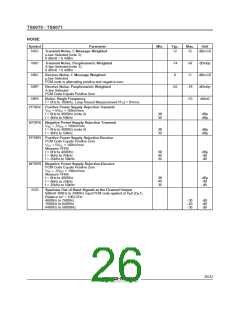

TRANSMISSION CHARACTERISTICS
Unless otherwise noted, limits printed in BOLD
characters are guaranteedfor VCC = + 5 V ± 5 % ;
VSS =– 5V ± 5%, TA =-40°Cto85°C bycorrelation
with 100 % electrical testing at TA = 25 °C (-40°C
to 85°C for TS5070-Xand TS5071-X).

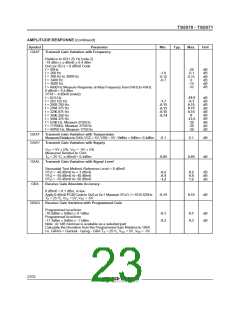

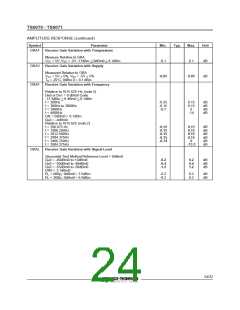

AMPLITUDE RESPONSE
Symbol
Parameter
Min.
Typ.
Max.
Unit
Absolute levels
The nominal 0 dBm 0 levels are :
VFXI
0 dB Tx Gain
25.4 dB Tx Gain
1.618
86.9
Vrms
mVrms
VFRO
0 dB Rx Attenuation (RL 15 k )
1.968
1.858
1.714
105.7
Vrms
Vrms
Vrms
≥
Ω
0.5 dB Rx Attenuation (RL ≥ 600 Ω)
1.2 dB Rx Attenuation (RL ≥ 300 Ω)
25.4 dB Rx Attenuation
mVrms
Maximum Overload
The nominal overload levels are :
A-law
VFXI
0 dB Tx Gain
25.4 dB Tx Gain
2.323
124.8
Vrms
mVrms
VFRO
0 dB Rx Attenuation (RL ≥ 15 kΩ)
0.5 dB Rx Attenuation (RL ≥ 300 Ω)
2.825
2.667
2.461
151.7
Vrms
Vrms
Vrms
1.2 dB Rx Attenuation (RL 300
)
≥
Ω
25.4 dB Rx Attenuation
mVrms
-law
µ
VFXI
0 dB Tx Gain
25.4 dB Tx Gain
2.332
125.2
Vrms
mVrms
VFRO
0 dB Rx Attenuation (RL 15 k )
2.836
2.677
2.470
152.3
Vrms
Vrms
Vrms
≥
Ω
0.5 dB Rx Attenuation (RL ≥ 600 Ω)
1.2 dB Rx Attenuation (RL ≥ 300 Ω)
25.4 dB Rx Attenuation
mVrms
Transmit Gain Absolute Accurary
GXA
Transmit Gain Programmed for 0 dBm0 = 6.4 dBm, A-law
Measure Deviation of Digital Code from Ideal 0 dBm0 PCM Code
at DX0/1, f = 1031.25 Hz
TA = 25 °C, VCC = 5 V, VSS = – 5 V
– 0.15
0.15
dB
Transmit gain Variation with Programmed Gain
GXAG
Programmed level from
-12.6dBm ≤ 0dBm ≤ 6.4dBm
Programmed level from
– 0.1
– 0.3
0.1
0.3
dB
dB
-19dBm 0dBm 12.7dBm
≤
≤
Note: 0.1dB min/max is available as a selected part
±
Calculate the Deviation from the Programmed Gain Relative to
GXA
i.e., GXAG = Gactual – Gprog – GXA
TA = 25 °C, VCC = 5 V, VSS = – 5 V
