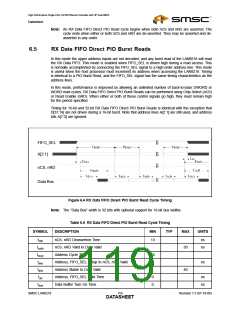

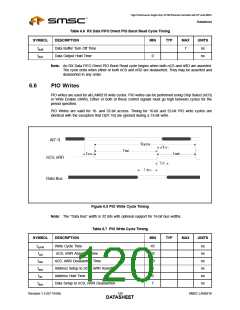

High-Performance Single-Chip 10/100 Ethernet Controller with HP Auto-MDIX
Datasheet
6.2
PIO Reads
PIO reads can be used to access CSRs or RX Data and RX/TX status FIFOs. In this mode, counters
in the CSRs are latched at the beginning of the read cycle. Read data is valid as indicated in the timing
diagram. PIO reads can be performed using Chip Select (nCS) or Read Enable (nRD). Either or both
of these control signals must go high between cycles for the period specified.
PIO reads are supported for both 16- and 32-bit access. Timing for 16-bit and 32-bit PIO Read cycles
is identical with the exception that D[31:16] are not driven during a 16-bit read.
Note: Some registers have restrictions on the timing of back-to-back, write-read and read-read
cycles.
A[7:1]
nCS, nRD
Data Bus
Figure 6.1 PIO Read Cycle Timing
Note: The “Data Bus” width is 32 bits with optional support for 16-bit bus widths
Table 6.3 PIO Read Timing
SYMBOL
DESCRIPTION
MIN
TYP
MAX
UNITS
tcycle
tcsl
Read Cycle Time
45
32
13
ns
ns
ns
ns
ns
ns
ns
ns
ns
nCS, nRD Assertion Time
nCS, nRD Deassertion Time
nCS, nRD Valid to Data Valid
Address Setup to nCS, nRD Valid
Address Hold Time
tcsh
tcsdv
tasu
tah
30
0
0
0
tdon
tdoff
tdoh
Data Buffer Turn On Time
Data Buffer Turn Off Time
Data Output Hold Time
7
0
Note: A PIO Read cycle begins when both nCS and nRD are asserted. The cycle ends when either
or both nCS and nRD are deasserted. They may be asserted and deasserted in any order.
