EFM32G Data Sheet

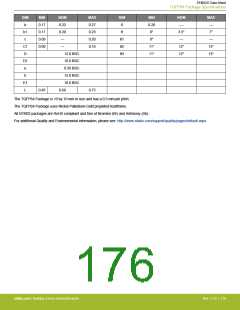

TQFP64 Package Specifications
a
b
c
e
d
Figure 8.4. TQFP64 PCB Stencil Design
Table 8.4. TQFP64 PCB Stencil Design Dimensions (Dimensions in mm)
Symbol
Dim. (mm)
1.50
a
b
c
d
e
0.20
0.50
11.50
11.50
Note:
1. The drawings are not to scale.
2. All dimensions are in millimeters.
3. All drawings are subject to change without notice.
4. The PCB Land Pattern drawing is in compliance with IPC-7351B.
5. Stencil thickness 0.125 mm.
6. For detailed pin-positioning, see Pin Definitions.
