EFM32G Data Sheet

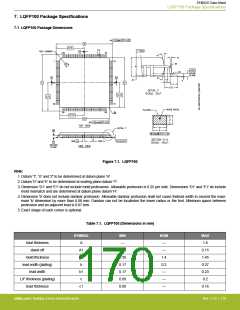

LQFP100 Package Specifications
a
b
c
e
d
Figure 7.4. LQFP100 PCB Stencil Design
Table 7.4. LQFP100 PCB Stencil Design Dimensions (Dimensions in mm)
Symbol
Dim. (mm)
1.35
a
b
c
d
e
0.20
0.50
15.40
15.40
Note:
1. The drawings are not to scale.
2. All dimensions are in millimeters.
3. All drawings are subject to change without notice.
4. The PCB Land Pattern drawing is in compliance with IPC-7351B.
5. Stencil thickness 0.125 mm.
6. For detailed pin-positioning, see Pin Definitions.
