SX1232
WIRELESS & SENSING
DATASHEET

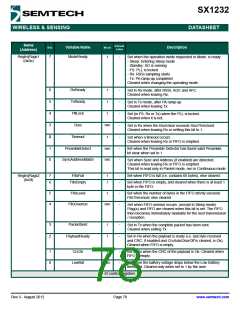

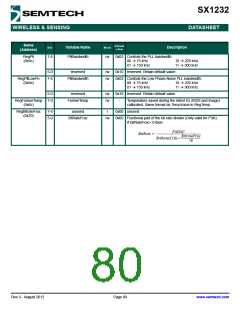

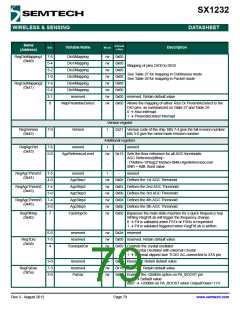

Name
(Address)
Default
value
Bits
Mode
Variable Name
Description
RegSeqConfig2
(0x37)
7-5 FromReceive
rw
0x00
Controls the Sequencer transition from the Receive state
000 and 111: unused
001: to PacketReceived state on a PayloadReady interrupt
010: to LowPowerSelection on a PayloadReady interrupt
011: to PacketReceived state on a CrcOk interrupt (1)
100: to SequencerOff state on a Rssi interrupt
101: to SequencerOff state on a SyncAddress interrupt
110: to SequencerOff state on a PreambleDetect interrupt
Irrespective of this setting, transition to LowPowerSelection on
a T2 interrupt
(1) If the CRC is wrong (corrupted packet, with CRC on but
CrcAutoClearOn=0), the PayloadReady interrupt will drive the
sequencer to RxTimeout state.
4-3 FromRxTimeout
rw
0x00
Controls the state-machine transition from the Receive state
on a RxTimeout interrupt (and on PayloadReady if
FromReceive = 011):
00: to Receive State, via ReceiveRestart
01: to Transmit state
10: to LowPowerSelection
11: to SequencerOff state
Note: RxTimeout interrupt is a TimeoutRxRssi,
TimeoutRxPreamble or TimeoutSignalSync interrupt
2-0 FromPacketReceived
rw
0x00 Controls the state-machine transition from the
PacketReceived state:
000: to SequencerOff state
001: to Transmit state on a FifoEmpty interrupt
010: to LowPowerSelection
011: to Receive via FS mode, if frequency was changed
100: to Receive state (no frequency change)
RegTimerResol
(0x38)
7-4 unused
r
-
unused
3-2 Timer1Resolution
rw
0x00 Resolution of Timer 1
00: Timer1 disabled
01: 64 us
10: 4.1 ms
11: 262 ms
1-0 Timer2Resolution
rw
0x00 Resolution of Timer 2
00: Timer2 disabled
01: 64 us
10: 4.1 ms
11: 262 ms
RegTimer1Coef
(0x39)
7-0 Timer1Coefficient
7-0 Timer2Coefficient
rw
rw
0xf5 Multiplying coefficient for Timer 1
0x20 Multiplying coefficient for Timer 2
RegTimer2Coef
(0x3a)
Rev 3 - August 2012
Page 76
