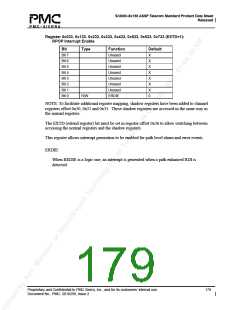

Register 0x032, 0x132, 0x232, 0x332, 0x432, 0x532, 0x632, 0x732:
RPOP Pointer Interrupt Status
Bit
Type
R
Function
ILLJREQI
Unused
DISCOPAI
INVNDFI
ILLPTRI
NSEI
Default
Bit 7
Bit 6
Bit 5
Bit 4
Bit 3
Bit 2
Bit 1
Bit 0
X
X
X
X
X
X
X
X
R
R
R
R
R
R
PSEI
NDFI
This register allows identification and acknowledgment of pointer event interrupts.
NDFI:
The NDFI bit is set to logic one when the RPOP detects an active NDF event to a valid
pointer value. NDFI is cleared when the RPOP Pointer Interrupt Status register is read.
PSEI:
The PSEI bit is set to logic one when the RPOP detects a positive stuff event. PSEI is
cleared when the RPOP Pointer Interrupt Status register is read.
NSEI:
The NSEI bit is set to logic one when the RPOP detects a negative stuff event. NSEI is
cleared when the RPOP Pointer Interrupt Status register is read.
ILLPTRI:
The ILLPTRI bit is set to logic one when the RPOP detects an illegal pointer event.
ILLPTRI is cleared when the RPOP Pointer Interrupt Status register is read.
INVNDFI:
The INVNDFI bit is set to logic one when the RPOP detects an invalid NDF event.
INVNDFI is cleared when the RPOP Pointer Interrupt Status register is read.
DISCOPAI:
The DISCOPAI bit is set to logic one when the RPOP detects a discontinuous change of
pointer. DISCOPAI is cleared when the RPOP Pointer Interrupt Status register is read.
