Preliminary Information
MT9076
20.5 Master Status 1 (Page03H) (E1)
Address
(A4A3A2A1A0)
Register
Function

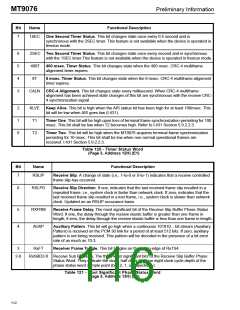

12H (Table 119)
13H (Table 120)
Timer Status Word
1SEC, 2SEC, 400T, 8T, CALN, KLVE, T1,T2
Most Significant Phase Status Word
RSLIP, RSLPD, RxFRM, AUXP, RxFT,
RxSBD2-0

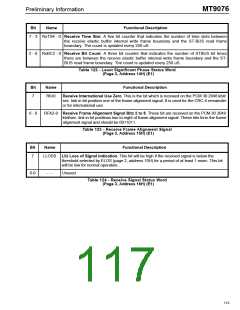

14H (Table 121)
15H (Table 122)
16H (Table 123)
17H (Table 124)
18H (Table 125)
19H (Table 126)
1AH (Table 127)
1BH (Table 128)
Least Significant Phase Status Word
Receive Frame Alignment Signal
Receive Signal Status Word
Jitter Attenuator Status Word
Receive Non-frame Alignment Signal
Receive Multiframe Alignment Signal
Sa Bits Report Word
RxTS4-0, RxBC2-0
RIU0 &RFA2-8
LLOS
JACS, JACF, JAE, JAF4, JAFC, JAE4, JAF
RIU1, RNFAB, RALM, &RNU4-8
RMAI1-4, X1, Y, X2, & X3
Sa5, Sa6nibble, C8Sa6, CSa6, RxSa3-0
Alarm Status Word 2
RAIS, AISS, AIS16S, LOSS, AUXPS, MFALMS,
SLIPS
1CH
Reserved
1DH (Table 129)
1EH (Table 130)
1FH (Table 131)
Analog Peak Detector
Equalized Signal Peak Detector
Identification Register
AP7-0
ESP7-0
Set to 01111000
Table 117 - Master Status 1 (Page 3) (E1)
109
