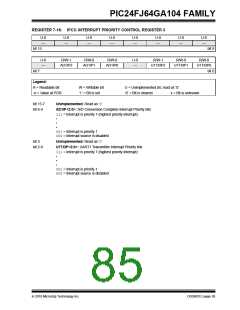

PIC24FJ64GA104 FAMILY
REGISTER 7-14: IEC4: INTERRUPT ENABLE CONTROL REGISTER 4
U-0
—
U-0
—
R/W-0
U-0
—
U-0
—
U-0
—
U-0
—
R/W-0
LVDIE
CTMUIE
bit 15
bit 8
U-0
—
U-0
—
U-0
—
U-0
—
R/W-0
R/W-0
R/W-0
U-0
—
CRCIE
U2ERIE
U1ERIE
bit 7
bit 0
Legend:
R = Readable bit
-n = Value at POR
W = Writable bit
‘1’ = Bit is set
U = Unimplemented bit, read as ‘0’
‘0’ = Bit is cleared x = Bit is unknown
bit 15-14
bit 13
Unimplemented: Read as ‘0’
CTMUIE: CTMU Interrupt Enable bit
1= Interrupt request enabled
0= Interrupt request not enabled
bit 12-9
bit 8
Unimplemented: Read as ‘0’
LVDIE: Low-Voltage Detect Interrupt Enable bit
1= Interrupt request enabled
0= Interrupt request not enabled
bit 7-4
bit 3
Unimplemented: Read as ‘0’
CRCIE: CRC Generator Interrupt Enable bit
1= Interrupt request enabled
0= Interrupt request not enabled
bit 2
U2ERIE: UART2 Error Interrupt Enable bit
1= Interrupt request enabled
0= Interrupt request not enabled
bit 1
bit 0
U1ERIE: UART1 Error Interrupt Enable bit
1= Interrupt request enabled
0= Interrupt request not enabled
Unimplemented: Read as ‘0’
