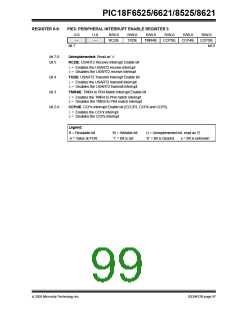

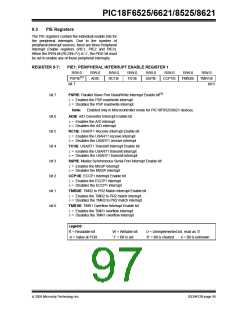

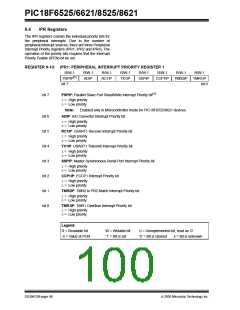

PIC18F6525/6621/8525/8621

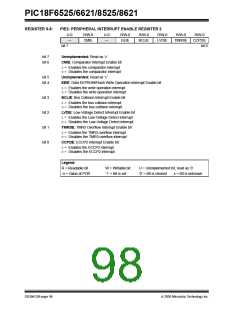

REGISTER 9-11: IPR2: PERIPHERAL INTERRUPT PRIORITY REGISTER 2
U-0
—
R/W-1
CMIP
U-0
—
R/W-1
EEIP
R/W-1
BCLIP
R/W-1
LVDIP
R/W-1
R/W-1
TMR3IP
CCP2IP
bit 7
bit 0
bit 7
bit 6
Unimplemented: Read as ‘0’
CMIP: Comparator Interrupt Priority bit
1= High priority
0= Low priority
bit 5
bit 4
Unimplemented: Read as ‘0’
EEIP: Data EEPROM/Flash Write Operation Interrupt Priority bit
1= High priority
0= Low priority
bit 3
bit 2
bit 1
bit 0
BCLIP: Bus Collision Interrupt Priority bit
1= High priority
0= Low priority
LVDIP: Low-Voltage Detect Interrupt Priority bit
1= High priority
0= Low priority
TMR3IP: TMR3 Overflow Interrupt Priority bit
1= High priority
0= Low priority
CCP2IP: ECCP2 Interrupt Priority bit
1= High priority
0= Low priority
Legend:
R = Readable bit
-n = Value at POR
W = Writable bit
‘1’ = Bit is set
U = Unimplemented bit, read as ‘0’
‘0’ = Bit is cleared x = Bit is unknown
