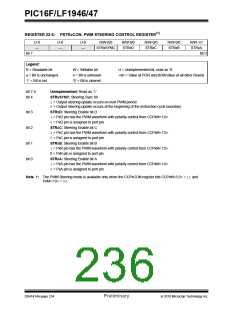

PIC16F/LF1946/47
REGISTER 22-2: CCPTMRS0: PWM TIMER SELECTION CONTROL REGISTER 0
R/W-0/0
R/W-0/0
R/W-0/0
R/W-0/0
R/W-0/0
R/W-0/0
R/W-0/0
R/W-0/0
C4TSEL<1:0>
C3TSEL<1:0>
C2TSEL<1:0>
C1TSEL<1:0>
bit 7
bit 0
Legend:
R = Readable bit
W = Writable bit
U = Unimplemented bit, read as ‘0’
-n/n = Value at POR and BOR/Value at all other Resets
u = Bit is unchanged
‘1’ = Bit is set
x = Bit is unknown
‘0’ = Bit is cleared
bit 7-6
bit 5-4
bit 3-2
bit 1-0
C4TSEL<1:0>: CCP4 Timer Selection bits
00= CCP4 is based off Timer 2 in PWM Mode
01= CCP4 is based off Timer 4 in PWM Mode
10= CCP4 is based off Timer 6 in PWM Mode
11= Reserved
C3TSEL<1:0>: CCP3 Timer Selection bits
00= CCP3 is based off Timer 2 in PWM Mode
01= CCP3 is based off Timer 4 in PWM Mode
10= CCP3 is based off Timer 6 in PWM Mode
11= Reserved
C2TSEL<1:0>: CCP2 Timer Selection bits
00= CCP2 is based off Timer 2 in PWM Mode
01= CCP2 is based off Timer 4 in PWM Mode
10= CCP2 is based off Timer 6 in PWM Mode
11= Reserved
C1TSEL<1:0>: CCP1 Timer Selection bits
00= CCP1 is based off Timer 2 in PWM Mode
01= CCP1 is based off Timer 4 in PWM Mode
10= CCP1 is based off Timer 6 in PWM Mode
11= Reserved
