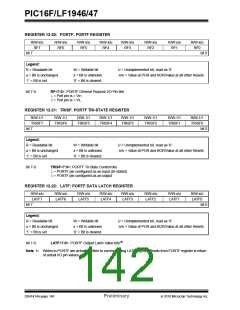

PIC16F/LF1946/47
REGISTER 12-16: PORTE: PORTE REGISTER
R/W-x/u
RE7
R/W-x/u
RE6
R/W-x/u
RE5
R/W-x/u
RE4
R/W-x/u
RE3
R/W-x/u
RE2
R/W-x/u
RE1
R/W-x/u
RE0
bit 7
bit 0
Legend:
R = Readable bit
W = Writable bit
U = Unimplemented bit, read as ‘0’
-n/n = Value at POR and BOR/Value at all other Resets
u = Bit is unchanged
‘1’ = Bit is set
x = Bit is unknown
‘0’ = Bit is cleared
bit 7-0
RE<7:0>: PORTE I/O Pin bits
1= Port pin is > VIH
0= Port pin is < VIL
REGISTER 12-17: TRISE: PORTE TRI-STATE REGISTER
R/W-1
R/W-1
R/W-1
R/W-1
R/W-1
R/W-1
R/W-1
R/W-1
TRISE7
TRISE6
TRISE5
TRISE4
TRISE3
TRISE2
TRISE1
TRISE0
bit 7
bit 0
Legend:
R = Readable bit
W = Writable bit
U = Unimplemented bit, read as ‘0’
-n/n = Value at POR and BOR/Value at all other Resets
u = bit is unchanged
‘1’ = Bit is set
x = Bit is unknown
‘0’ = Bit is cleared
bit 7-0
TRISE<7:0>: RE<7:0> Tri-State Control bits
1= PORTE pin configured as an input (tri-stated)
0= PORTE pin configured as an output
