Ribbon Cable Interconnect Solutions

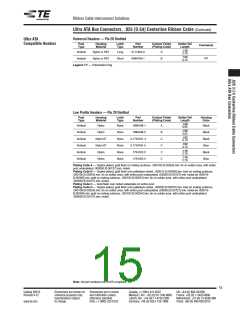

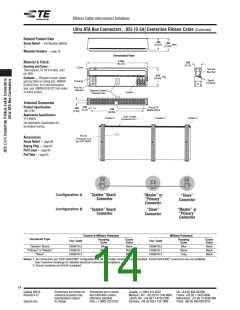

Ultra ATA Bus Connectors, .025 [0.64] Centerline Ribbon Cable
Product Facts
I IDC termination
I Backward compatible with
current IDE Interfaces
I Improved signal integrity:
1 to 1 signal to ground ratio
I Improved crosstalk when
compared to existing IDE
Cable Assembly
I Color coded connectors
for “System board,” and
“Master HDD” and
“Slave HDD”
I Cable impedance 80 ohms
I Up to 3 connectors per cable
assembly
I 15 microinches gold plating
I Recognized under the
Component Program
of the Underwriters
R
Laboratories, Inc.
Ultra ATA is the next genera- The new connectors are
UL File No. E28476
tion IDE (Integrated Drive
Electronics) bus. The current
IDE bus has a maximum
data transfer rate of about
16.5 MB/second. As the bus
speeds and disk drive per-
formances increase, the
cable assembly between
the motherboard and hard
drive becomes a limiting
factor in data transfer from
the drive.
color coded to identify:
I Certified by the
1. system board connector
2. primary or master hard
drive connector
Canadian Standards
Association,
R
File No. LR 7189
3. slave drive connector
I Terminates 30 AWG solid or
stranded PVC insulated 80
conductor ribbon cable
Standard Issues
The Ultra ATA cable per-
formance specification is
part of the Small Form
Factor Committee No. 8049.
Compaq Computer and
Western Digital are the
major sponsors of the
standard.
The Ultra ATA connector
and cable assembly from
TE provide the customer
with improved electrical
performance by creating a
1:1 signal-to-ground ratio.
The connector design incor-
porates an IDC bus bar to
common the 40 additional
ground signals. The cable is
.025" centerline PVC ribbon
cable. The connector is fully
backward compatible with
existing 40-position headers
with pin 20 removed on
motherboards and disk
drives.
Contacts Available:
I
80 position IDC contact
terminations
I
I
40 signal contacts
40 ground terminations to
special IDC bus bar
13
Catalog 82012
Dimensions are shown for
Dimensions are in inches
and millimeters unless
otherwise specified.
