AMP M Series
Pin and Socket Connectors
Protective Hardware (Continued)
Shields, Two-Piece,
180° and 90° Cable
Exit
A
Material and Finish
(Assembled)
Shields - See charts
Cable Clamp - Steel, nickel
plated
D
Screws - Steel, zinc plated
(Long)
C
D
(Short,
(Short)
Assembled)
C
These Two-Piece Shields are
used to protect connectors
from dust, dirt and physical
damage and to provide strain
relief for the contacts. They
feature integral cable clamps
formed at 180° and 90° and
are available in long and short
versions. Long versions offer
pin protection as well as con-
nector protection and strain
relief. Short versions may be
used in combination with Pin
Hoods to provide pin protec-
tion.
(Long,
Assembled)
B
180° Cable Exit
For shielding and fastening
applications, Two-Piece Shields
are used with Jackscrews.
They may be secured to a
connector housing using other
appropriate hardware such as
Guide Pins and Sockets.
C
A
(Assembled)
(Assembled)

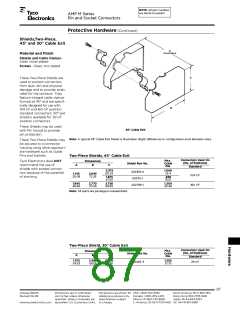

Two-Piece Shields with cable
clamps formed at 45° are
available, see page 87.
Tyco Electronics does NOT
recommend the use of shields
with posted connectors
because of the potential of
shorting.
D
D
(Long)
(Short)
B
90° Cable Exit
84
Catalog 82003
Revised 06-08
