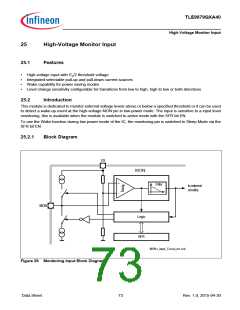

TLE9879QXA40
High-Voltage Monitor Input
25
High-Voltage Monitor Input
25.1
Features
•
•
•
•
High-voltage input with VS/2 threshold voltage
Integrated selectable pull-up and pull-down current sources
Wake capability for power saving modes
Level change sensitivity configurable for transitions from low to high, high to low or both directions
25.2
Introduction
This module is dedicated to monitor external voltage levels above or below a specified threshold or it can be used
to detect a wake-up event at the high-voltage MON pin in low-power mode. The input is sensitive to a input level
monitoring, this is available when the module is switched to active mode with the SFR bit EN.
To use the Wake function during low power mode of the IC, the monitoring pin is switched to Sleep Mode via the
SFR bit EN.
25.2.1
Block Diagram
VS
MON
+
-
Filter
to internal
circuitry
MON
Logic
SFR
MONx_Input_Circuit_ext.vsd
Figure 29 Monitoring Input Block Diagram
Data Sheet
73
Rev. 1.0, 2015-04-30
