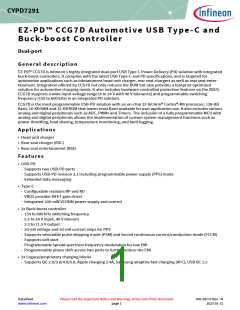

EZ-PD™ CCG7D Automotive USB Type-C and Buck-boost Controller
Dual-port
Features
• System-level fault protection
- On-chip VBUS overvoltage protection (OVP), overcurrent protection (OCP), undervoltage protection (UVP)
- VBUS to CC short protection
- VBAT to GND protection FET gate driver
- Under-voltage lockout (UVLO)
- Supports over-temperature protection through integrated ADC circuit and internal temperature sensor
- Supports connector and board temperature measurement using external thermistors
• 32-bit MCU subsystem
- 48-MHz Arm® Cortex®-M0 CPU
- 128-KB Flash
- 16-KB SRAM
- 32-KB ROM
• Peripherals and GPIOs
- 19 GPIOs
- Two over-voltage GPIOs
- 3x 8-bit ADC
- 4x 16-bit timer/counter/PWMs (TCPWM)
• Communication interfaces
- 4x SCBs (I2C/SPI/UART/LIN)
• Clocks and oscillators
- Integrated oscillator eliminating the need for an external clock
• Power supply
- 4 to 24 V input (40-V tolerant)
- 3.3 to 21.5 V output
- Integrated LDO capable of 5 V @ 150 mA
• Packages
- 68-pin QFN, wettable flank, AEC-Q100
- Supports automotive ambient temperature range (–40°C to +105°C) with 125°C operating junction
temperature
Datasheet
2
002-28172 Rev. *N
2023-01-31
