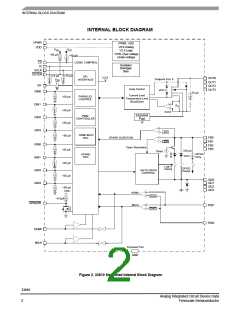

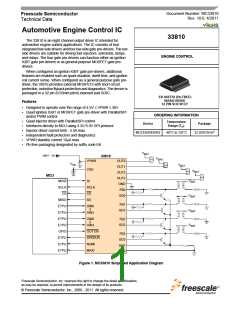

PIN CONNECTIONS
Table 1. 33810 Pin Definitions (continued)
A functional description of each pin can be found in the Functional Pin Description section beginning on page 15.
Pin Number Pin Name Pin Function
Formal Name
Definition
The Output Enable pin (OUTEN) is an active low input. When the OUTEN
pin is low, the device outputs are active. The outputs are disabled when
OUTEN is high.
9
OUTEN
MAXI
Input
Output Enable
This pin is the Maximum Ignition Coil Current output flag. This output is
asserted when the IGBT Collector-Emitter current exceeds the selected
level of the DAC. This signal also latches off the gate pre-drive outputs
when configured as a General Purpose Gate pre-Driver. The MAXI
current level is determined by the voltage drop across an external sense
resistor connected to pins RSP and RSN.
29
Output
Maximum Ignition Coil
Current
This pin is the Nominal Ignition Coil Current output flag. This output is
asserted when the IGBT Collector-Emitter current exceeds the level
selected by the DAC.
28
NOMI
Output
Nominal Ignition Coil
Current
In IGBT ignition gate pre-driver mode, these feedback inputs monitor the
IGBT's collector voltage to provide the spark duration timer control signal.
2, 15, 31, 18
3, 14, 30,19
FB0 - FB3
GD0 -GD3
Input
Feedback Voltage
Sense
IGBT/General Purpose Gate pre-driver outputs are controlled by GIN0 -
GIN3. Pull-up and pull-down current sources are used to provide a
controlled slew rate to an external IGBT or MOSFET connected as a low
side driver.
Output
Gate Drive Output
This pin is the Positive input of a current sense amplifier.
This pin is the Negative input of a current sense amplifier.
These pin are the Open drain low side injector driver outputs.
26
27
RSP
RSN
Input
Input
Resistor Sense
Positive
Resistor Sense
Negative
1, 16, 32, 17 OUT0 -OUT3
Output
Low Side Injector
Driver Output
33810
Analog Integrated Circuit Device Data
Freescale Semiconductor
4
