Inter-IC Bus
IIC Register Descriptions
15.6 IIC Register Descriptions
.
IBAD — IIC Bus Address Register
$00E0
Bit 7
ADR7
0
6
ADR6
0
5
ADR5
0
4
ADR4
0
3
ADR3
0
2
ADR2
0
1
ADR1
0
Bit 0
0
0
RESET:
Read and write anytime
This register contains the address the IIC will respond to when
addressed as a slave; note that it is not the address sent on the bus
during the address transfer
ADR7–ADR1 — Slave Address
Bit 1 to bit 7 contain the specific slave address to be used by the IIC
module.
The default mode of IIC is slave mode for an address match on the
bus.
IBFD — IIC Bus Frequency Divider Register
$00E1
Bit 7
6
0
0
5
IBC5
0
4
IBC4
0
3
IBC3
0
2
IBC2
0
1
IBC1
0
Bit 0
IBC0
0
0
0
RESET:
Read and write anytime
IBC5–IBC0 — IIC Bus Clock Rate 5–0
This field is used to prescale the clock for bit rate selection. The bit
clock generator is implemented as a prescaled shift register - IBC5-3
select the prescaler divider and IBC2-0 select the shift register tap
point. The IBC bits are decoded to give the Tap and Prescale values

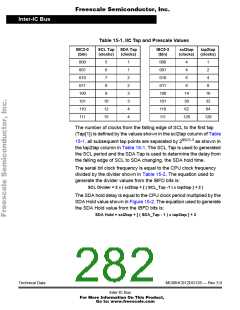

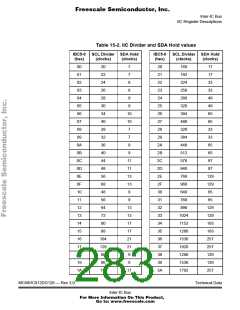

as shown in Table 15-1.
