15.1 Description
The USB device controller provides the hardware that the AT89C5132 need to interface a USB
link to data flow stored in a double port memory.
It requires a 48 MHz reference clock provided by the clock controller as detailed in Section
"Clock Controller", page 68. This clock is used to generate a 12 MHz Full Speed bit clock from
the received USB differential data flow and to transmit data according to full speed USB device
tolerance. Clock recovery is done by a Digital Phase Locked Loop (DPLL) block.
The Serial Interface Engine (SIE) block performs NRZI encoding and decoding, bit stuffing, CRC
generation and checking, and the serial-parallel data conversion.
The Universal Function Interface (UFI) controls the interface between the data flow and the Dual
Port RAM, but also the interface with the C51 core itself.
Figure 15-3 shows how to connect the AT89C5132 to the USB connector. D+ and D- pins are
connected through 2 termination resistors. A pull-up resistor is implemented on D+ to inform the
host of a full speed device connection. Value of these resistors is detailed in the section “DC
Characteristics”.
Figure 15-1. USB Device Controller Block Diagram
USB
CLOCK
48 MHz
12 MHz
DPLL
D+
D-
USB
Buffer
To/From
C51 Core
UFI
SIE
Figure 15-2. USB Connection
VDD
To Power
Supply
RFS
VBUS
D+
D-
D+
D-
RUSB
RUSB
GND
VSS
15.1.1
Clock Controller

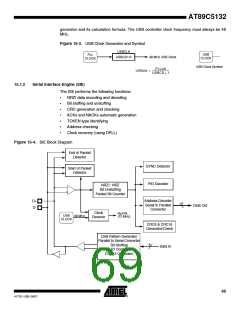

The USB controller clock is generated by division of the PLL clock. The division factor is given by
USBCD1:0 Bits in USBCLK register (see Table 70). Figure 15-3 shows the USB controller clock
