AT8xC51SND2C
Bit Rate
The bit rate can be selected from seven predefined bit rates or from a programmable bit
rate generator using the SSCR2, SSCR1, and SSCR0 control bits in SSCON (see
Table 174). The predefined bit rates are derived from the peripheral clock (FPER) issued
from the Clock Controller block as detailed in section "Oscillator", page 12, while bit rate
generator is based on timer 1 overflow output.
Table 166. Serial Clock Rates
SSCRx
Bit Frequency (kHz)
2
0
0
0
0
1
1
1
1
1
0
0
1
1
0
0
1
1
0
0
1
0
1
0
1
0
1
FPER = 6 MHz
FPER = 8 MHz
62.5
FPER = 10 MHz
78.125
89.3
F
PER Divided By
47
53.5
62.5
75
128
112
96
71.5
83
104.2(1)
125(1)
100
80
12.5
100
16.5
20.83
480
60
133.3(1)
266.7(1)
166.7(1)
333.3(1)
200(1)
30
0.5 < ⋅ < 125(1) 0.67 < ⋅ < 166.7(1) 0.81 < ⋅ < 208.3(1) 96 ⋅ (256 – reload value Timer 1)
Note:
1. These bit rates are outside of the low speed standard specification limited to 100 kHz
but can be used with high speed TWI components limited to 400 kHz.
Master Transmitter Mode
In the master transmitter mode, a number of data Bytes are transmitted to a slave

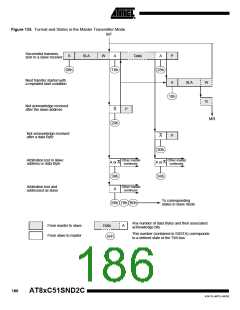

receiver (see Figure 133). Before the master transmitter mode can be entered, SSCON
must be initialized as follows:
SSCR2
Bit Rate
SSPE
1
SSSTA
0
SSSTO
0
SSI
0
SSAA
X
SSCR1
Bit Rate
SSCR0
Bit Rate
SSCR2:0 define the serial bit rate (see Table 166). SSPE must be set to enable the con-
troller. SSSTA, SSSTO and SSI must be cleared.
The master transmitter mode may now be entered by setting the SSSTA bit. The TWI
logic will now monitor the TWI bus and generate a START condition as soon as the bus
becomes free. When a START condition is transmitted, the serial interrupt flag (SSI bit
in SSCON) is set, and the status code in SSSTA is 08h. This status must be used to
vector to an interrupt routine that loads SSDAT with the slave address and the data
direction bit (SLA+W). The serial interrupt flag (SSI) must then be cleared before the
serial transfer can continue.
When the slave address and the direction bit have been transmitted and an acknowl-
edgment bit has been received, SSI is set again and a number of status code in SSSTA
are possible. There are 18h, 20h or 38h for the master mode and also 68h, 78h or B0h if
the slave mode was enabled (SSAA = logic 1). The appropriate action to be taken for
each of these status code is detailed in Table 167. This scheme is repeated until a
STOP condition is transmitted.
SSPE and SSCR2:0 are not affected by the serial transfer and are not referred to in

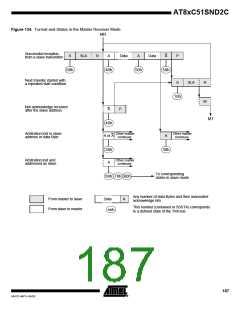

Table 167. After a repeated START condition (state 10h) the controller may switch to
the master receiver mode by loading SSDAT with SLA+R.
183
4341D–MP3–04/05
