DATA SHEET
Am29F016D
16 Megabit (2 M x 8-Bit)
CMOS 5.0 Volt-only, Uniform Sector Flash Memory

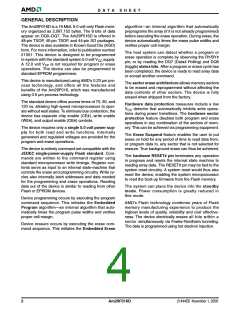

DISTINCTIVE CHARACTERISTICS
■ 5.0 V ± 10%, single power supply operation
■ Unlock Bypass Program Command
— Minimizes system level power requirements
— Reduces overall programming time when
issuing multiple program command sequences
■ Manufactured on 0.23 µm process technology
■ Minimum 1,000,000 program/erase cycles per
— Compatible with 0.5 µm Am29F016 and 0.32 µm
Am29F016B devices
sector guaranteed
■ 20-year data retention at 125°C
— Reliable operation for the life of the system

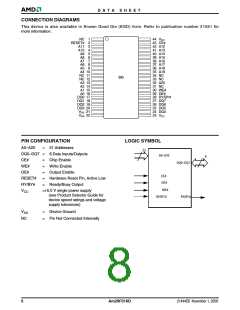

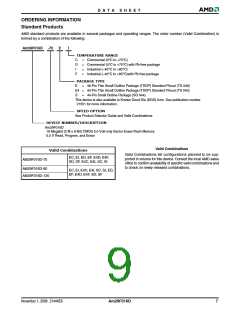

■ Package options

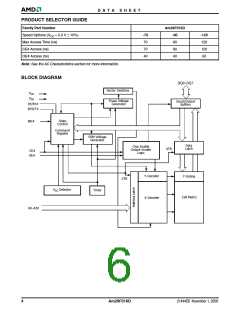

■ High performance
— Access times as fast as 70 ns
■ Low power consumption

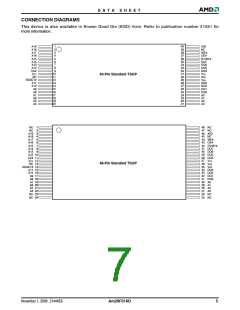

— 48-pin and 40-pin TSOP
— 44-pin SO
— 25 mA typical active read current
— 30 mA typical program/erase current
— Known Good Die (KGD)
— 1 µA typical standby current (standard access
time to active mode)
(see publication number 21551)
■ Compatible with JEDEC standards
■ Flexible sector architecture
— 32 uniform sectors of 64 Kbytes each
— Any combination of sectors can be erased
— Supports full chip erase
— Pinout and software compatible with
single-power-supply Flash standard
— Superior inadvertent write protection
■ Data# Polling and toggle bits
— Group sector protection:
— Provides a software method of detecting
program or erase cycle completion
A hardware method of locking sector groups to
prevent any program or erase operations within
that sector group
■ Ready/Busy# output (RY/BY#)
— Provides a hardware method for detecting
program or erase cycle completion
Temporary Sector Group Unprotect allows code
changes in previously locked sectors
■ Embedded Algorithms
■ Erase Suspend/Erase Resume
— Embedded Erase algorithm automatically
preprograms and erases the entire chip or any
combination of designated sectors
— Suspends a sector erase operation to read data
from, or program data to, a non-erasing sector,
then resumes the erase operation
— Embedded Program algorithm automatically
writes and verifies bytes at specified addresses
■ Hardware reset pin (RESET#)
— Resets internal state machine to the read mode
Publication# 21444 Rev: E Amendment: 6
Issue Date: November 2, 2006
