Ver 1.3
PRELIMINARY
EAGLE
3.7.10 CRT Control Register(CRTCON)

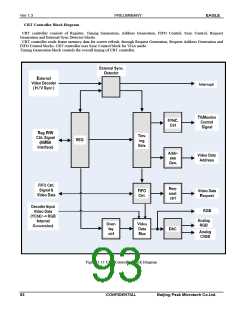

CRT Control register controls the operation mode of CRTC.
* Frame Memory Bank <n> Ping-Pone Enable
: Inactivation / Activation of Frame Memory Bank switchover by Graphic Engine Flip Command
- In inactivation state, CRT Frame Memory Bank is fixed.
- In activation state, switchover of CRT Frame Memory Bank is performed by Graphic Engine Flip Command
( refer to explanation about CSC Image Capturer Control Register Bit 0 )
* Bit per Pixel
: Register for setting the number of bits per Pixel
: Only used in 24 bit mode – JPEG Image Capturer block
* External Video Sync Dependent / Independent Mode Bit
: In Independent Mode setting, independent of Local / Remote Mode setting.
: In Dependent Mode setting, dependent on Local / Remote Mode setting
* Local / Remote Mode
: Operates with Sync generated from CRTC,
Operates independent of Local mode - External Video Decoder Sync.
: CRTC is synchronized in Remote mode - External Video Decoder Sync.
* TV / VGA Mode is configured using CRT Control Register[7:6]:.
00 : VGA mode
11 : TV mode
* TV Mode is configured using CRT Control Register[5:4]:
00 : NTSC,PAL-M
10 : PAL COMBI-N
01 : ban on usage (N/A)
11 : PAL BDGHIN
* Vertical Double Scan
: one line is displayed two times to Vertical direction.
* Horizontal Double Scan
: one Pixel is displayed two times to Horizontal direction
Address : FFE0 1424h
Bit
31 : 25
24
R/W
R
R/W
Description
Default Value
Reserved
Software Reset.
: 0 = Normal operation
-
1b
1=Reset,.
# Miscellaneous #
23:22
R
Reserved
-
21
R/W
HSYNC. Output Polarity.
: 0 = LOW ACTIVE
VSYNC. Output Polarity.
: 0 = LOW ACTIVE
0b
1 = HIGH ACTIVE
1 = HIGH ACTIVE
20
R/W
0b
# FIFO / Memory Control register #
19
R/W
Frame Memory bank <n> Ping-Pong Enable.
: 0 = Disable 1 = Enable
FIFO Request control(Total depth : 256)
0b
18 : 17
R/W
00b
: 00 = one half request(128)
: 10 = one eighth request(32) 11 : Don’t use
Bit per Pixel
01 : one fourth request(64)
16
R/W
0b
: 0 = 16 bit mode
1 = 24 bit mode
# Local / Remote mode register #
15
14
R
External Video Sync Dependent / Independent Mode
0b
0b
: 0 = Dependent
1 = Independent
R/W
Local / Remote Mode.
: 0 = Local mode
1 = Remote mode

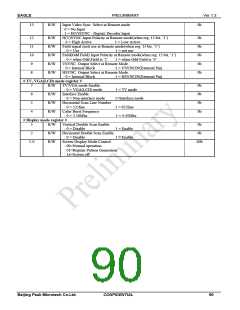

89
CONFIDENTIAL
Beijing Peak Microtech Co.Ltd.
