TMS320C6678
Multicore Fixed and Floating-Point Digital Signal Processor
SPRS691D—April 2013
www.ti.com
7.11.3 DDR3 Memory Controller Electrical Data/Timing
The KeyStone DSP DDR3 Implementation Guidelines in ‘‘Related Documentation from Texas Instruments’’ on
page 73 specifies a complete DDR3 interface solution as well as a list of compatible DDR3 devices. The DDR3
electrical requirements are fully specified in the DDR3 Jedec Specification JESD79-3C. TI has performed the
simulation and system characterization to ensure all DDR3 interface timings in this solution are met; therefore, no
electrical data/timing information is supplied here for this interface.
Note—TI supports only designs that follow the board design guidelines outlined in the application report.

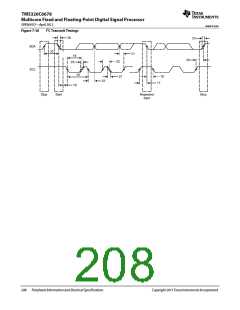

7.12 I2C Peripheral
The inter-integrated circuit (I2C) module provides an interface between DSP and other devices compliant with
Philips Semiconductors Inter-IC bus (I2C bus) specification version 2.1 and connected by way of an I2C bus.
External components attached to this 2-wire serial bus can transmit/receive up to 8-bit data to/from the DSP
through the I2C module.
7.12.1 I2C Device-Specific Information
The TMS320C6678 device includes an I2C peripheral module.
Note—When using the I2C module, ensure there are external pullup resistors on the SDA and SCL pins.
The I2C modules on the C6678 may be used by the DSP to control local peripheral ICs (DACs, ADCs, etc.) or may
be used to communicate with other controllers in a system or to implement a user interface.
The I2C port is compatible with Philips I2C specification revision 2.1 (January 2000) and supports:
•
•
•
•
•
•
Fast mode up to 400 Kbps (no fail-safe I/O buffers)
Noise filter to remove noise 50 ns or less
7-bit and 10-bit device addressing modes
Multi-master (transmit/receive) and slave (transmit/receive) functionality
Events: DMA, interrupt, or polling
Slew-rate limited open-drain output buffers
204
Peripheral Information and Electrical Specifications
Copyright 2013 Texas Instruments Incorporated
TI [ TEXAS INSTRUMENTS ]
