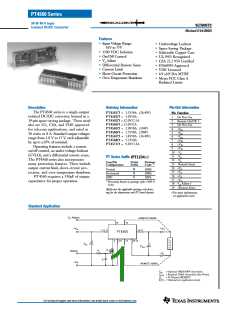

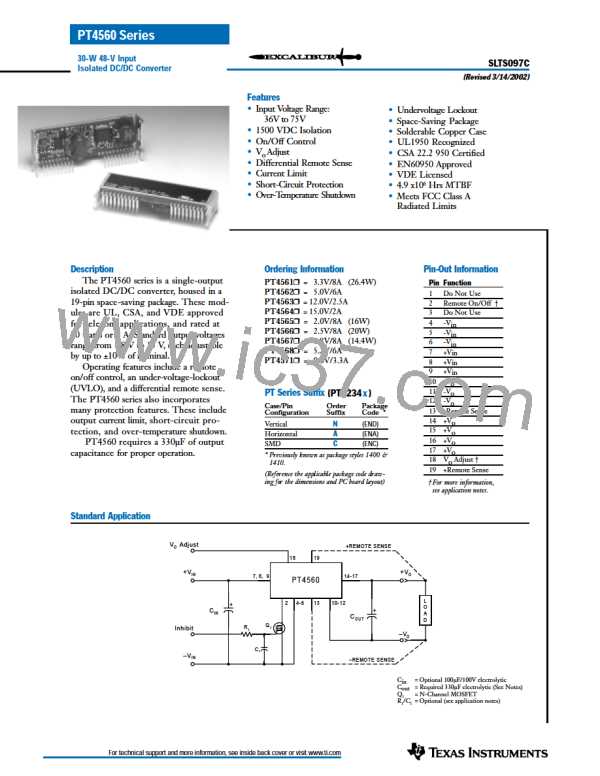

PT4560 Series
30-W 48-V Input
Isolated DC/DC Converter
SLTS097C
(Revised 3/14/2002)
Features
• Input Voltage Range:
36V to 75V
• 1500 VDC Isolation
• On/Off Control
• Vo Adjust
• Differential Remote Sense
• Current Limit
• Undervoltage Lockout
• Space-Saving Package
• Solderable Copper Case
• UL1950 Recognized
• CSA 22.2 950 Certified
• EN60950 Approved
• VDE Licensed
• 4.9 x106 Hrs MTBF
• Meets FCC Class A
Radiated Limits
• Short-Circuit Protection
• Over-Temperature Shutdown
Description
Ordering Information
Pin-Out Information
The PT4560 series is a single-output
isolated DC/DC converter, housed in a
19-pin space-saving package. These mod-
ules are UL, CSA, and VDE approved
for telecom applications, and rated at
30 watts or 8 A. Standard output voltages
range from 1.8 V to 15 V, each adjustable
by up to 10ꢀ of nominal.
Operating features include a remote
on/off control, an under-voltage-lockout
(UVLO), and a differential remote sense.
The PT4560 series also incorporates
many protection features. These include
output current limit, short-circuit pro-
tection, and over-temperature shutdown.
PT4560 requires a 330µF of output
capacitance for proper operation.
PT 4561r = 3.3V/8A (26.4W)
PT 4562r = 5.0V/6A
PT 4563r = 12.0V/2.5A
Pin Function
1
2
3
4
5
6
7
8
9
Do Not Use
Remote On/Off †
Do Not Use
PT 4564r = 15.0V/2A
PT 4565r = 2.0V/8A (16W)
PT 4566r = 2.5V/8A (20W)
PT 4567r = 1.8V/8A (14.4W)
PT 4568r = 5.2V/6A
-V
in
-V
-V
in
in
+V
in
+V
in
+V
in
PT 4571r = 9.0V/3.3A
10 -V
o
11 -V
PT Series Suffix
o
o
(PT1234x)
12 -V
Case/Pin
Configuration
O rder
Suffix
Package
Code *
13 -Remote Sense
14 +V
o
Vertical
Horizontal
SMD
N
A
C
(END)
(ENA)
(ENC)
15 +V
o
16 +V
o
17 +V
o
o
* Previously known as package styles 1400 &
1410.
18
V Adjust †
19 +Remote Sense
(Reference the applicable package code draw-
ing for the dimensions and PC board layout)
†For more information,
see application notes.
Standard Application
VO Adjust
+REMOTE SENSE
18
19
+VIN
+VO
7, 8,
9
14-17
PT4560
L
O
A
D
2
4-6
13
10-12
+
+
CIN
CO U T
Q 1
R1
Inhibit
–VO
C 1
–VIN
–REMOTE SENSE
C
= Optional 100µF/100V electrolytic
= Required 330µF electrolytic (See Notes)
= N-Channel MOSFET
in
C
out
Q1
R1/C1 = Optional (see application notes)
