MSP430G2x53
MSP430G2x13
www.ti.com
SLAS735A APRIL 2011REVISED MAY 2011
MIXED SIGNAL MICROCONTROLLER
1
FEATURES
Low Supply-Voltage Range: 1.8 V to 3.6 V
Ultra-Low Power Consumption
Universal Serial Communication Interface
(USCI)
Enhanced UART Supporting Auto Baudrate
Detection (LIN)
IrDA Encoder and Decoder
Synchronous SPI
I2C
Active Mode: 230 µA at 1 MHz, 2.2 V
Standby Mode: 0.5 µA
Off Mode (RAM Retention): 0.1 µA
Five Power-Saving Modes
Ultra-Fast Wake-Up From Standby Mode in
Less Than 1 µs
16-Bit RISC Architecture, 62.5-ns Instruction
Cycle Time
On-Chip Comparator for Analog Signal
Compare Function or Slope Analog-to-Digital
(A/D) Conversion
10-Bit 200-ksps Analog-to-Digital (A/D)
Converter With Internal Reference,
Sample-and-Hold, and Autoscan (See Table 1)
Brownout Detector
Serial Onboard Programming,
No External Programming Voltage Needed,
Programmable Code Protection by Security
Fuse
Basic Clock Module Configurations
Internal Frequencies up to 16 MHz With
Four Calibrated Frequency
Internal Very-Low-Power Low-Frequency
(LF) Oscillator
32-kHz Crystal
External Digital Clock Source
Two 16-Bit Timer_A With Three
Capture/Compare Registers
Up to 24 Touch-Sense-Enabled I/O Pins
On-Chip Emulation Logic With Spy-Bi-Wire
Interface

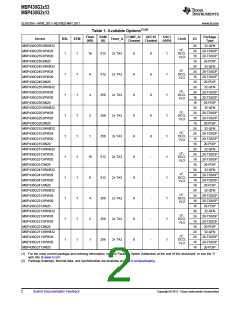

Family Members are Summarized in Table 1

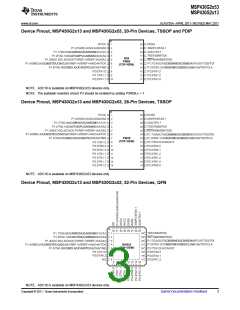

Package Options
TSSOP: 20 Pin, 28 Pin
PDIP: 20 Pin
QFN: 32 Pin
For Complete Module Descriptions, See the
MSP430x2xx Family Users Guide (SLAU144)
DESCRIPTION
The Texas Instruments MSP430 family of ultra-low-power microcontrollers consists of several devices featuring
different sets of peripherals targeted for various applications. The architecture, combined with five low-power
modes, is optimized to achieve extended battery life in portable measurement applications. The device features a
powerful 16-bit RISC CPU, 16-bit registers, and constant generators that contribute to maximum code efficiency.
The digitally controlled oscillator (DCO) allows wake-up from low-power modes to active mode in less than 1 µs.
The MSP430G2x13 and MSP430G2x53 series are ultra-low-power mixed signal microcontrollers with built-in
16-bit timers, up to 24 I/O touch-sense-enabled pins, a versatile analog comparator, and built-in communication
capability using the universal serial communication interface. In addition the MSP430G2x53 family members
have a 10-bit analog-to-digital (A/D) converter. For configuration details see Table 1.
Typical applications include low-cost sensor systems that capture analog signals, convert them to digital values,
and then process the data for display or for transmission to a host system.
1
Please be aware that an important notice concerning availability, standard warranty, and use in critical applications of Texas
Instruments semiconductor products and disclaimers thereto appears at the end of this data sheet.
PRODUCTION DATA information is current as of publication date.
Copyright © 2011, Texas Instruments Incorporated
Products conform to specifications per the terms of the Texas
Instruments standard warranty. Production processing does not
necessarily include testing of all parameters.
