CDC536
www.ti.com
SCAS378G–APRIL 1994–REVISED JULY 2004

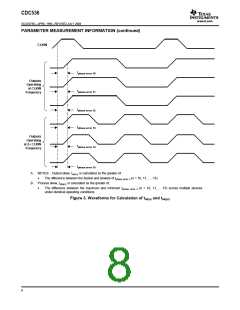

PARAMETER MEASUREMENT INFORMATION (continued)
CLKIN
t
phase error 10
Outputs
Operating
at CLKIN
t
phase error 11
Frequency
t
t
phase error 12
phase error 13
Outputs
Operating
at 2× CLKIN
Frequency
t
phase error 14
phase error 15
t
A. NOTES: . Output skew, tsk(o), is calculated as the greater of:
The difference between the fastest and slowest of tphase error n (n = 10, 11, . . . 15)
B. Process skew, tsk(pr), is calculated as the greater of:
•
•
The difference between the maximum and minimum tphase
under identical operating conditions.
(n = 10, 11, . . . 15) across multiple devices
n
error
Figure 3. Waveforms for Calculation of tsk(o) and tsk(pr)
8
