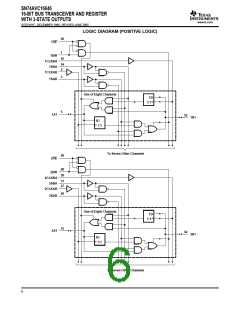

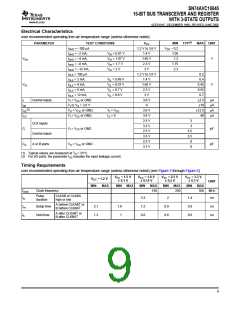

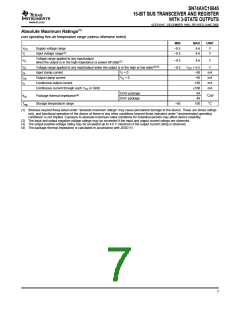

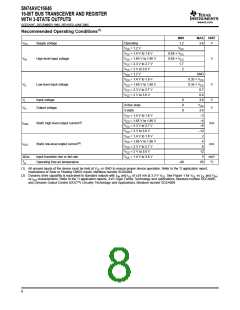

SN74AVC16646
16-BIT BUS TRANSCEIVER AND REGISTER
WITH 3-STATE OUTPUTS
www.ti.com
SCES181F–DECEMBER 1998–REVISED JUNE 2005
FEATURES
•
•
•
•
Overvoltage-Tolerant Inputs/Outputs Allow
Mixed-Voltage-Mode Data Communications
•
•
•
Member of the Texas Instruments Widebus™
Family
Ioff Supports Partial-Power-Down Mode
Operation
EPIC™ (Enhanced-Performance Implanted
CMOS) Submicron Process
Latch-Up Performance Exceeds 100 mA Per
JESD 78, Class II
DOC™ (Dynamic Output Control) Circuit
Dynamically Changes Output Impedance,
Resulting in Noise Reduction Without Speed
Degradation
Package Options Include Plastic Thin Shrink
Small-Outline (DGG) and Thin Very
Small-Outline (DGV) Packages
•
Dynamic Drive Capability Is Equivalent to
Standard Outputs With IOH and IOL of ±24 mA
at 2.5-V VCC
DESCRIPTION
A Dynamic Output Control (DOC™) circuit is implemented, which, during the transition, initially lowers the output

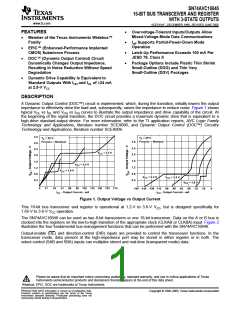

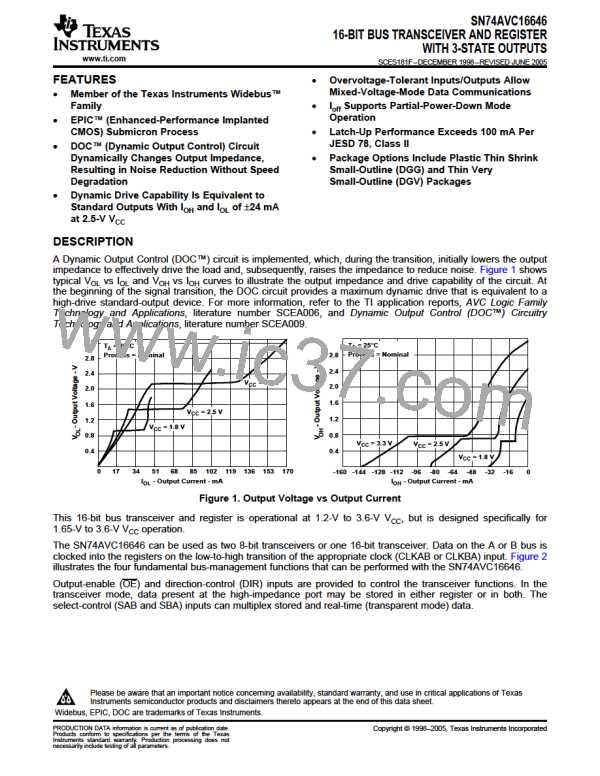

impedance to effectively drive the load and, subsequently, raises the impedance to reduce noise. Figure 1 shows
typical VOL vs IOL and VOH vs IOH curves to illustrate the output impedance and drive capability of the circuit. At
the beginning of the signal transition, the DOC circuit provides a maximum dynamic drive that is equivalent to a
high-drive standard-output device. For more information, refer to the TI application reports, AVC Logic Family
Technology and Applications, literature number SCEA006, and Dynamic Output Control (DOC™) Circuitry
Technology and Applications, literature number SCEA009.
3.2
T
A
= 25°C
T
A
= 25°C
Process = Nominal
Process = Nominal
2.8
2.4
2.0
2.8
2.4
2.0
V
CC
= 3.3 V
1.6
1.2
0.8
0.4
1.6
1.2
0.8
0.4
V
CC
= 2.5 V
V
CC
= 1.8 V
V
CC
= 3.3 V
V
CC
= 2.5 V
V
CC
= 1.8 V
0
17
34
51
68
85 102 119 136 153 170
-160 -144 -128 -112 -96 -80 -64 -48 -32 -16
- Output Current - mA
0
I
- Output Current - mA
I
OH
OL
Figure 1. Output Voltage vs Output Current

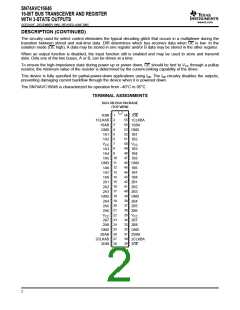

This 16-bit bus transceiver and register is operational at 1.2-V to 3.6-V VCC, but is designed specifically for
1.65-V to 3.6-V VCC operation.
The SN74AVC16646 can be used as two 8-bit transceivers or one 16-bit transceiver. Data on the A or B bus is

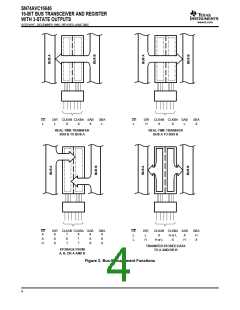

clocked into the registers on the low-to-high transition of the appropriate clock (CLKAB or CLKBA) input. Figure 2
illustrates the four fundamental bus-management functions that can be performed with the SN74AVC16646.

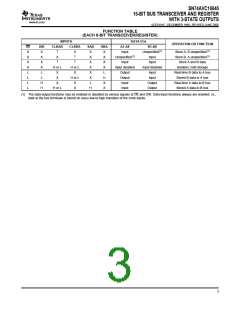

Output-enable (OE) and direction-control (DIR) inputs are provided to control the transceiver functions. In the
transceiver mode, data present at the high-impedance port may be stored in either register or in both. The
select-control (SAB and SBA) inputs can multiplex stored and real-time (transparent mode) data.
