A d v a n c e I n f o r m a t i o n
START
Read DQ15–DQ0
Addr = VA
Yes
DQ7 = Data?
No
No
DQ5 = 1?
Yes
Read DQ15–DQ0
Addr = VA
Yes
DQ7 = Data?
No
PASS
FAIL
Notes:
1. VA = Valid address for programming. During a sector erase operation, a valid address is any sector address within the sector being erased.
During chip erase, a valid address is any non-protected sector address.
2. DQ7 should be rechecked even if DQ5 = 1 because DQ7 may change simultaneously with DQ5.
Figure 7. Data# Polling Algorithm
RY/BY#: Ready/Busy#
The RY/BY# is a dedicated, open-drain output pin which indicates whether an
Embedded Algorithm is in progress or complete. The RY/BY# status is valid after
the rising edge of the final WE# pulse in the command sequence. Since RY/BY#
is an open-drain output, several RY/BY# pins can be tied together in parallel with
a pull-up resistor to V
.
CC
If the output is low (Busy), the device is actively erasing or programming. (This
includes programming in the Erase Suspend mode.) If the output is high
(Ready), the device is in the read mode, the standby mode, or in the erase-sus-

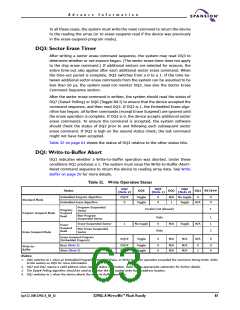

pend-read mode. Table 32 on page 61 shows the outputs for RY/BY#.
April 22, 2005 S29GL-A_00_A3
S29GL-A MirrorBit™ Flash Family
