USB 2.0 High-Speed 4-Port Hub Controller
Datasheet

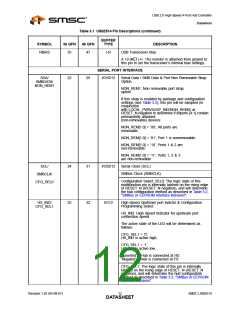

Table 3.3 USB2514 Power, Ground, No Connect
PACKAGE
SYMBOL
36 QFN
48 QFN
FUNCTION
VDD18
14
17
VDD Core
+1.8V core power. If the internal regulator is enabled, then this pin
must have a 1.0μF (or greater) ±20% (ESR <0.1Ω)
capacitor to VSS.
VDD33PLL
36
34
48
46
VDD 3.3 PLL Regulator Reference
+3.3V power supply for the PLL. If the internal PLL 1.8V regulator
is enabled, then this pin acts as the regulator input.
VDDPLL18
VDD PLL
+1.8V Filtered analog power for internal PLL. If the internal
regulator is enabled, then this pin must have a 4.7μF (or greater)
±20% (ESR <0.1Ω) capacitor to VSS.
VDDA33
5
10
29
5
10
41
VDD Analog I/O
+3.3V Filtered analog PHY power, shared between adjacent ports.
VDD33/VDD33CR
23
15
30
18
VDDIO/VDD 3.3 Core Regulator Reference
+3.3V power supply for the Digital I/O
If the internal core regulator is enabled, then VDD33CR acts as
the regulator input.
VSS
n/a
n/a
VSS
Ground
3.2
Buffer Type Descriptions
Table 3.4 USB2514 Buffer Type Descriptions
DESCRIPTION
BUFFER
I
Input.
IPD
IPU
IS
Input with internal weak pull-down resistor.
Input with internal weak pull-up resistor.
Input with Schmitt trigger.
O12
OD12
I/O12
Output 12mA.
Open drain... 12mA sink.
Input/Output buffer with 12mA sink and 12mA source.
Revision 1.92 (05-08-07)
SMSC USB2514
DATA1S6HEET
