Bit 6 – MIDI Transmit Busy
Bit 6 MIDI Transmit Busy indicates the send (write) state of the MIDI Data port and Command port
(Table 37).
There are no interrupts associated with MIDI transmit (write) data.
TABLE 37 - MIDI TRANSMIT BUSY STATUS BIT
STATUS PORT DESCRIPTION
D6
0
The MPU-401 interface is ready to accept a
data/command byte from the host.
The MPU-401 interface is NOT ready to
accept a data/command byte from the host.
1
Bits[5:0]
RESERVED (Reserved bits cannot be written and return ‘0’ when read).
Command Port
The Command port is used to transfer MPU-401 commands to the Command Controller. The

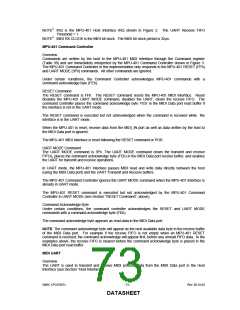

Command port is write-only (Table 38). See Section “MPU-401 Command Controller” below.
TABLE 38 – MPU-401 COMMAND PORT
MPU-401 I/O BASE ADDRESS+1
D7
W
D6
W
D5
W
D4
W
D3
W
D2
W
D1
W
D0
W
DEFAULT
TYPE
n/a
NAME
COMMAND REGISTER
Interrupt
The MPU-401 IRQ is asserted (‘1’) when either MIDI receive data or a command acknowledge byte is
available to the host in the MIDI Data register (Figure 3). The IRQ is deasserted (‘0’) when the host
reads the MIDI Data port.
NOTE: If, following a host read, data is still available in the Receive FIFO, the IRQ will remain asserted
(‘1’).
The IRQ is enabled when the ‘Activate’ bit in the MPU-401 configuration registers logical device block is
asserted ‘1’. If the Activate bit is deasserted ‘0’, the MPU-401 IRQ cannot be asserted (see Section

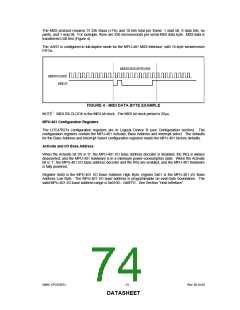

“MPU-401 Configuration Registers”).
The MPU-401 IRQ is not affected by MIDI write data, transmit-related functions or Receiver Line Status
interrupts.
The factory default Sound Blaster 16 MPU-401 IRQ is 5.
NOTE: IRQ remains asserted
until read FIFO is empty
MIDI_IN
MIDI RX CLOCK4
DATA READY1
IRQ3
MIDI RX DATA BYTE N
MIDI RX DATA BYTE N+1
nREAD2
FIGURE 3 - MPU-401 INTERRUPT
NOTE1 DATA READY represents the Data Ready bit B0 in the UART Line Status Register.
NOTE2 nREAD represents host read operations from the MIDI Data register.
