M366S2953MTS
PC133/PC100 Unbuffered DIMM

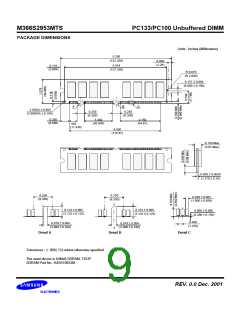

PACKAGE DIMENSIONS
Units : Inches (Millimeters)
5.250
(133.350)
0.089
(2.26)
5.014
0.118
(3.000)
(127.350)
R 0.079
(R 2.000)
0.157 ± 0.004
(4.000 ± 0.100)
B
C
A
.118DIA ± 0.004
(3.000DIA ± 0.100)
0.250
(6.350)
0.250
(6.350)
0.350
(8.890)
1.450
(36.830)
2.150
(54.61)
.450
(11.430)
4.550
(115.57)
0.150 Max
(3.81 Max)
0.050 ± 0.0039
(1.270 ± 0.10)
0.250
0.250
0.039 ± 0.002
(1.000 ± 0.050)
(6.350)
(6.350)
0.123 ± 0.005
0.123 ± 0.005
0.008 ± 0.006
(3.125 ± 0.125)
(3.125 ± 0.125)
(0.200 ± 0.150)
0.050
(1.270)
0.079 ± 0.004
(2.000 ± 0.100)
0.079 ± 0.004
(2.000 ± 0.100)
Detail A
Detail B
Detail C
Tolerances : ± .005(.13) unless otherwise specified
The used device is 64Mx8 SDRAM, TSOP
SDRAM Part No. :K4S510832M
REV. 0.0 Dec. 2001
SAMSUNG [ SAMSUNG ]
