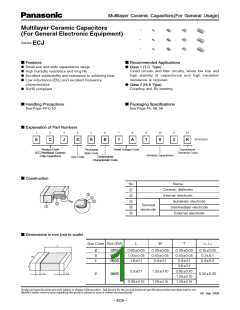

Multilayer Ceramic Capacitors(For General Usage)
Multilayer Ceramic Capacitors
(For General Electronic Equipment)
Series:
ECJ
Features
Small size and wide capacitance range
High humidity resistance and long life
Excellent solderability and resistance to soldering heat
Low inductance (ESL) and excellent frequency
characteristics
RoHS compliant
Recommended Applications
Class 1 (T.C. Type)
Tuned circuits, and filter circuitry, where low loss and
high stability of capacitance and high insulation
resistance is required
Class 2 (Hi-K Type)
Coupling and By-passing
Handling Precautions
See Page 48 to 53
Packaging Specifications
See Page 45, 46, 56
Explanation of Part Numbers
1
2
3
4
5
6
7
8
9
10
11
12
E
C
J
Z
E
B
1
A
1
0
3
K
(Example)
Product Code
(ECJ:Multilayer Ceramic
Chip Capacitors)
Packaging
Rated Voltage Code
Style Code
Temperature
Size Code
Characteristic Code
Capacitance
Tolerance Code
Nominal Capacitance
Construction
No
1
3
4
5
2
1
Name
Ceramic dielectric
Internal electrode
Substrate electrode
Terminal
electrode
Intermediate electrode
External electrode
2
3
4
5
Dimensions in mm (not to scale)
L
Size Code Size (EIA)
Z
0201
0402
0603
L
0.60±0.03
1.00±0.05
1.6±0.1
2.0±0.1
2.00±0.15
W
0.30±0.03
0.50±0.05
0.8±0.1
1.25±0.10
1.25±0.15
T
0.30±0.03
0.50±0.05
0.8±0.1
0.6±0.1
0.85±0.10
1.25±0.10
1.25±0.15
L
1
, L
2
0.15±0.05
0.2±0.1
0.3±0.2
W
0
1
T
L
1
L
2
2
0805
0.50±0.25
Design and specifications are each subject to change without notice. Ask factory for the current technical specifications before purchase and/or use.
Should a safety concern arise regarding this product, please be sure to contact us immediately.
00 Sep. 2008
– EC8 –
