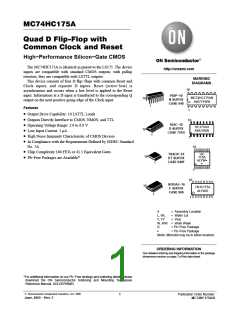

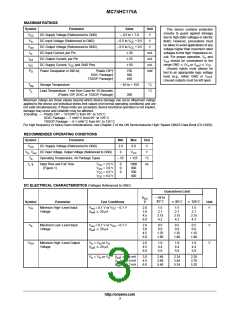

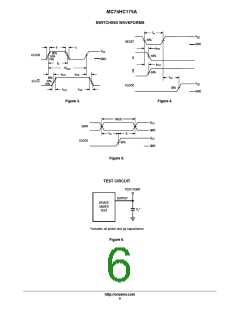

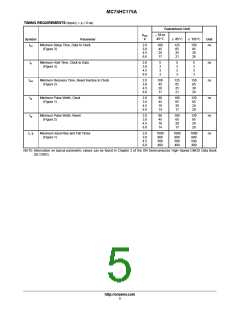

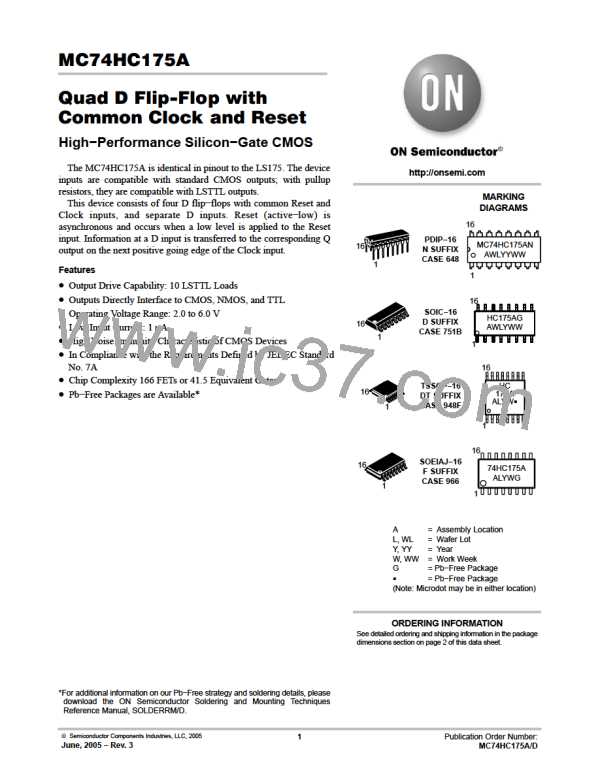

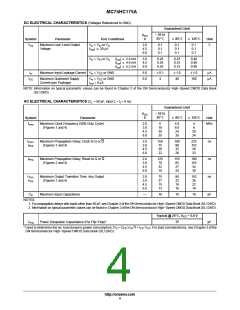

MC74HC175A
Quad D Flip−Flop with
Common Clock and Reset
High−Performance Silicon−Gate CMOS
The MC74HC175A is identical in pinout to the LS175. The device
inputs are compatible with standard CMOS outputs; with pullup
resistors, they are compatible with LSTTL outputs.

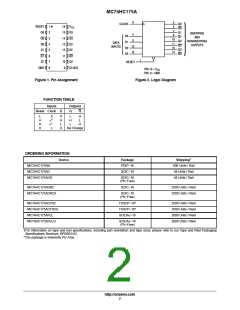

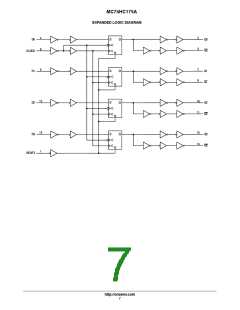

This device consists of four D flip−flops with common Reset and
Clock inputs, and separate D inputs. Reset (active−low) is
asynchronous and occurs when a low level is applied to the Reset
input. Information at a D input is transferred to the corresponding Q
output on the next positive going edge of the Clock input.
http://onsemi.com

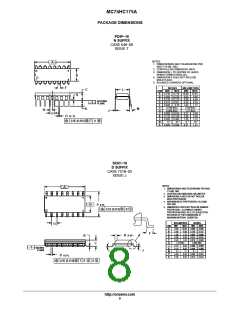

MARKING
DIAGRAMS
16
PDIP−16
N SUFFIX
CASE 648
MC74HC175AN
AWLYYWW
16
1
Features
1
• Output Drive Capability: 10 LSTTL Loads
• Outputs Directly Interface to CMOS, NMOS, and TTL
• Operating Voltage Range: 2.0 to 6.0 V
• Low Input Current: 1 mA
• High Noise Immunity Characteristic of CMOS Devices
• In Compliance with the Requirements Defined by JEDEC Standard
No. 7A
16
SOIC−16
D SUFFIX
CASE 751B
HC175AG
AWLYWW
16
1
1
16
• Chip Complexity 166 FETs or 41.5 Equivalent Gates
• Pb−Free Packages are Available*
TSSOP−16
DT SUFFIX
CASE 948F
HC
175A
ALYWG
G
16
1
1
16
1
SOEIAJ−16
F SUFFIX
CASE 966
16
74HC175A
ALYWG
1
A
L, WL
Y, YY
= Assembly Location
= Wafer Lot
= Year
W, WW = Work Week
G
= Pb−Free Package
= Pb−Free Package
G
(Note: Microdot may be in either location)
