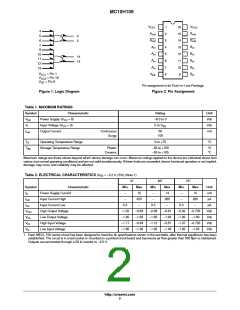

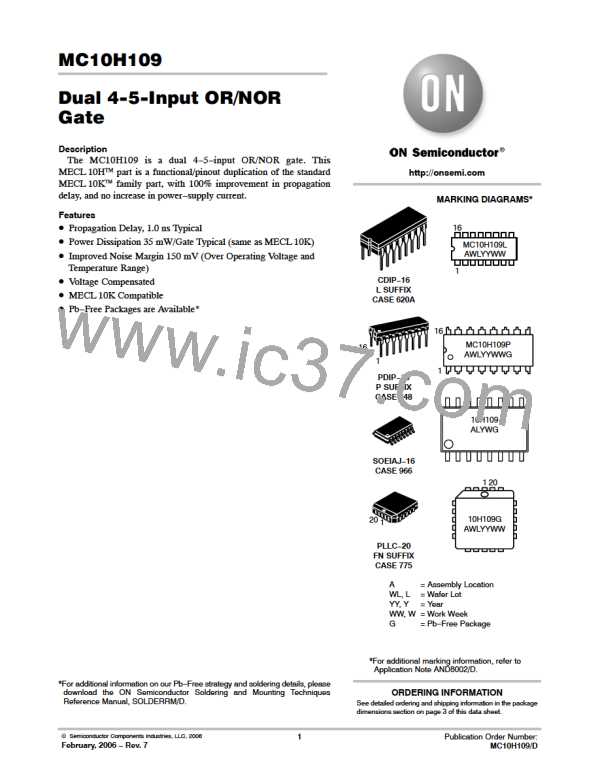

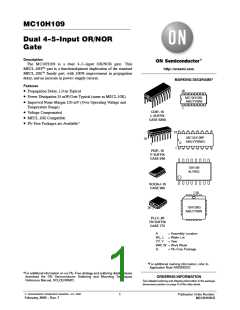

MC10H109
Dual 4−5−Input OR/NOR
Gate
Description
The MC10H109 is a dual 45input OR/NOR gate. This
MECL 10Hpart is a functional/pinout duplication of the standard
MECL 10Kfamily part, with 100% improvement in propagation
delay, and no increase in powersupply current.
http://onsemi.com
MARKING DIAGRAMS*
Features
16
Propagation Delay, 1.0 ns Typical
Power Dissipation 35 mW/Gate Typical (same as MECL 10K)
Improved Noise Margin 150 mV (Over Operating Voltage and
Temperature Range)
MC10H109L
AWLYYWW
1
CDIP16
L SUFFIX
CASE 620A
Voltage Compensated
MECL 10K Compatible
PbFree Packages are Available*
16
1
MC10H109P
AWLYYWWG
16
1
PDIP16
P SUFFIX
CASE 648
10H109
ALYWG
SOEIAJ16
CASE 966
1 20
10H109G
AWLYYWW
20
1
PLLC20
FN SUFFIX
CASE 775
A
= Assembly Location
= Year
WL, L = Wafer Lot
YY, Y
WW, W = Work Week
G
= PbFree Package
*For additional marking information, refer to
Application Note AND8002/D.
*For additional information on our PbFree strategy and soldering details, please
download the ON Semiconductor Soldering and Mounting Techniques
Reference Manual, SOLDERRM/D.

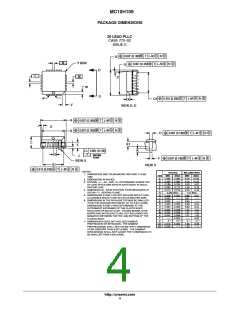

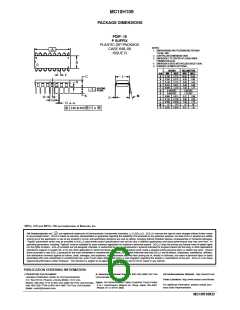

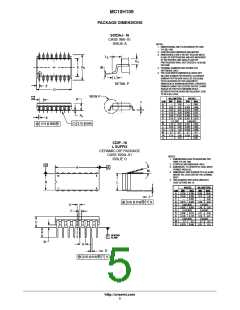

ORDERING INFORMATION
See detailed ordering and shipping information in the package
dimensions section on page 3 of this data sheet.
©
Semiconductor Components Industries, LLC, 2006
1
Publication Order Number:
February, 2006 Rev. 7
MC10H109/D
