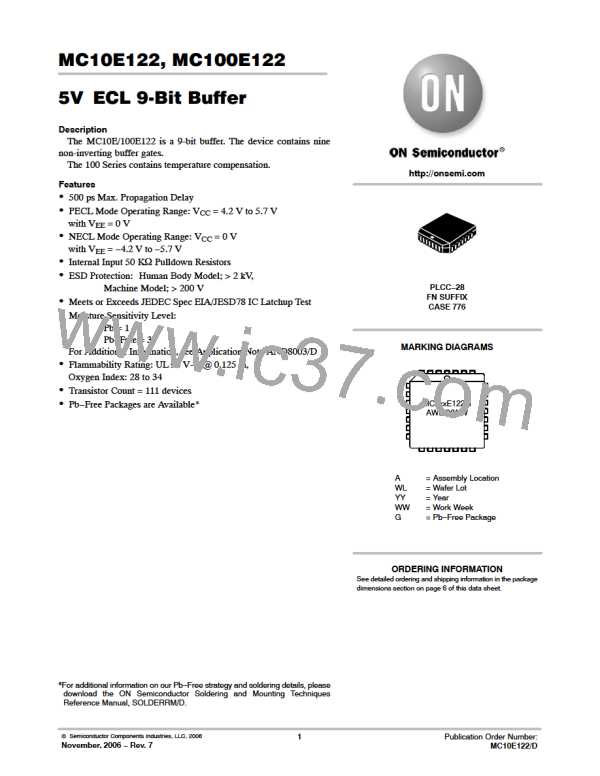

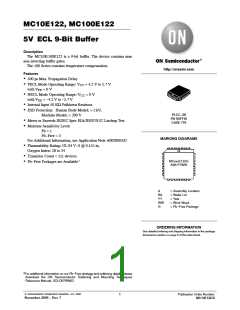

MC10E122, MC100E122
5VꢀECL 9-Bit Buffer
Description
The MC10E/100E122 is a 9-bit buffer. The device contains nine
non-inverting buffer gates.
The 100 Series contains temperature compensation.
http://onsemi.com
Features
500 ps Max. Propagation Delay
PECL Mode Operating Range: V = 4.2 V to 5.7 V
CC
with V = 0 V
EE
NECL Mode Operating Range: V = 0 V
CC
with V = 4.2 V to 5.7 V
EE
Internal Input 50 KW Pulldown Resistors
ESD Protection: Human Body Model; > 2 kV,
Machine Model; > 200 V
PLCC28
FN SUFFIX
CASE 776
Meets or Exceeds JEDEC Spec EIA/JESD78 IC Latchup Test
Moisture Sensitivity Level:
Pb = 1
PbFree = 3
MARKING DIAGRAMS
For Additional Information, see Application Note AND8003/D
Flammability Rating: UL 94 V0 @ 0.125 in,
Oxygen Index: 28 to 34
Transistor Count = 111 devices
PbFree Packages are Available*
MCxxxE122G
AWLYYWW
A
= Assembly Location
WL
YY
WW
G
= Wafer Lot
= Year
= Work Week
= PbFree Package

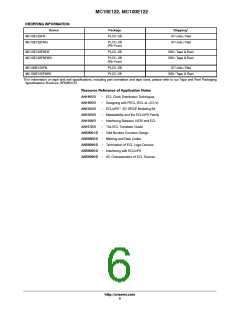

ORDERING INFORMATION

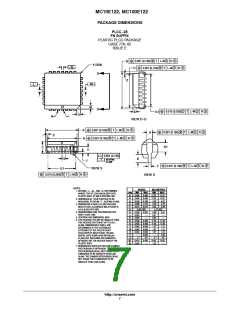

See detailed ordering and shipping information in the package
dimensions section on page 6 of this data sheet.
*For additional information on our PbFree strategy and soldering details, please
download the ON Semiconductor Soldering and Mounting Techniques
Reference Manual, SOLDERRM/D.
©
Semiconductor Components Industries, LLC, 2006
1
Publication Order Number:
November, 2006 Rev. 7
MC10E122/D
