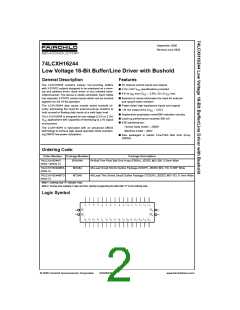

Functional Description
The LCXH16244 contains sixteen non-inverting buffers
with 3-STATE standard outputs. The device is nibble
(4 bits) controlled with each nibble functioning identically,
but independent of the other. The control pins can be
shorted together to obtain full 16-bit operation. The
3-STATE outputs are controlled by an Output Enable (OEn)
input for each nibble. When OEn is LOW, the outputs are in
2-state mode. When OEn is HIGH, the outputs are in the
high impedance mode, but this does not interfere with
entering new data into the inputs.
Logic Diagram
3
