Nano100(A)
Compliant to ISO-7816-3 T=0, T=1
Supports up to two ISO-7816-3 ports
Separates receive / transmit 4 bytes entry FIFO for data payloads
Programmable transmission clock frequency
Programmable receiver buffer trigger level
Programmable guard time selection (11 ETU ~ 267 ETU)
A 24-bit and two 8 bit time out counter for Answer to Request (ATR) and waiting
times processing
Supports auto inverse convention function
Supports transmitter and receiver error retry and error limit function
Supports hardware activation sequence process
Supports hardware warm reset sequence process
Supports hardware deactivation sequence process
Supports hardware auto deactivation sequence when detect the card is removal
USB 2.0 Full-Speed Device
One set of USB 2.0 FS Device 12Mbps
On-chip USB Transceiver
Provides 1 interrupt source with 4 interrupt events
Supports Control, Bulk In/Out, Interrupt and Isochronous transfers
Auto suspend function when no bus signaling for 3 ms
Provide 6 programmable endpoints
Include 512 Bytes internal SRAM as USB buffer
Provide remote wake-up capability
One built-in temperature sensor with 1℃ resolution
96-bit unique ID
Operating Temperature: -40℃~85℃
Packages:
All Green package (RoHS)

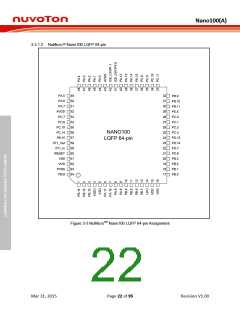

LQFP 100-pin(14x14) / 64-pin(7x7) / 48-pin(7x7) / QFN 33-pin(5x5)
