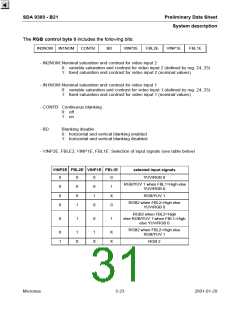

SDA 9380 - B21
Preliminary Data Sheet
System description
The Deflection control byte 1 includes the following bits:
BSO1
BSO0
NSA
NCLP
GBE
VDC
JMP
BSE
- BSO1..
BSO0 Black Switch-Off behaviour
00: no Black Switch-Off
01: Black Switch-Off mode 1 (see section 11.2)
10: Black Switch-Off mode 2 (see section 11.2)
11: Black Switch-Off mode 3 (see section 11.2)
- NSA:
No self adaptation
0: self adaptation on
1: self adaptation off
- NCLP: No clipping of vertical and east/west drive signals
0: Clipping of vertical and east/west drive signals in vertical zoom mode
(vertical aspect > 0) to reduce power consumption
1: No clipping in vertical zoom mode (vertical aspect > 0)
- GBE:
- VDC:
Guard band enable
0: control item for guard band is disabled
1: control item for guard band is enabled
Vertical dynamic compensation
0: influence of the beam current input IBEAM on the
vertical saw-tooth is static (´zooming´ correction)
1: influence of the beam current input IBEAM on the
vertical saw-tooth is dynamic (´ripple´ correction)
- JMP:
- BSE:
Jump of vertical drive up to overscan position in vertical shrink mode
0: complete reduction of the vertical drive in shrink mode (vertical aspect < 0)
1: no reduction of the vertical drive in shrink mode (vertical aspect < 0) during
RGB reference pulse lines
Blanking select enable
0: control items for blanking times are disabled
1: control items for blanking times are enabled
Micronas
5-19
2001-01-29
