1Gb: x4, x8, x16 DDR2 SDRAM
Input Slew Rate Derating
Input Slew Rate Derating
For all input signals, the total tIS (setup time) and tIH (hold time) required is calculated
by adding the data sheet tIS (base) and tIH (base) value to the ΔtIS and ΔtIH derating
value, respectively. Example: tIS (total setup time) = tIS (base) + ΔtIS.
tIS, the nominal slew rate for a rising signal, is defined as the slew rate between the last
crossing of VREF(DC) and the first crossing of VIH(AC)min. Setup nominal slew rate (tIS) for
a falling signal is defined as the slew rate between the last crossing of VREF(DC) and the
first crossing of VIL(AC)max
.

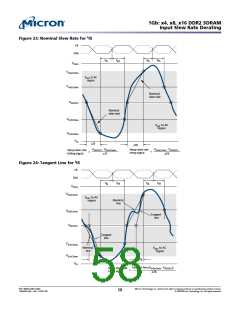

If the actual signal is always earlier than the nominal slew rate line between shaded
“VREF(DC) to AC region,” use the nominal slew rate for the derating value (Figure 23
(page 58)).
If the actual signal is later than the nominal slew rate line anywhere between the sha-
ded “VREF(DC) to AC region,” the slew rate of a tangent line to the actual signal from the
AC level to DC level is used for the derating value (see Figure 24 (page 58)).
tIH, the nominal slew rate for a rising signal, is defined as the slew rate between the last
crossing of VIL(DC)max and the first crossing of VREF(DC). tIH, nominal slew rate for a fall-
ing signal, is defined as the slew rate between the last crossing of VIH(DC)min and the first
crossing of VREF(DC)
.

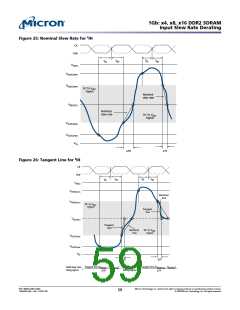

If the actual signal is always later than the nominal slew rate line between shaded “DC
to VREF(DC) region,” use the nominal slew rate for the derating value (Figure 25
(page 59)).
If the actual signal is earlier than the nominal slew rate line anywhere between shaded
“DC to VREF(DC) region,” the slew rate of a tangent line to the actual signal from the DC
level to VREF(DC) level is used for the derating value (Figure 26 (page 59)).
Although the total setup time might be negative for slow slew rates (a valid input signal
will not have reached VIH[AC]/VIL[AC] at the time of the rising clock transition), a valid
input signal is still required to complete the transition and reach VIH(AC)/VIL(AC)
.

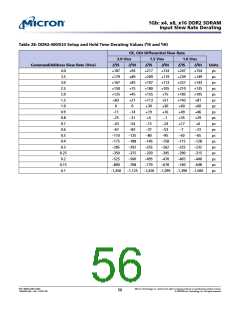

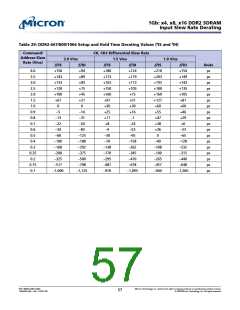

For slew rates in between the values listed in Table 28 (page 56) and Table 29
(page 57), the derating values may obtained by linear interpolation.
