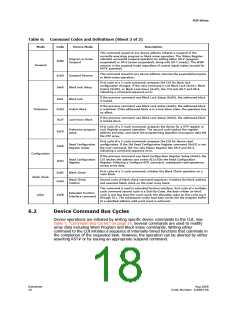

P33-65nm
Table 4:
TSOP and Easy BGA Signal Descriptions (Sheet 2 of 2)
Symbol
Type
Name and Function
RESERVED FOR FUTURE USE: Reserved by Numonyx for future device functionality and
enhancement. These should be treated in the same way as a Don’t Use (DU) signal.
RFU
—
DU
NC
—
—
DON’T USE: Do not connect to any other signal, or power supply; must be left floating.
NO CONNECT: No internal connection; can be driven or floated.
4.1
Dual-Die Configurations
Figure 6: 512-Mbit Easy BGA Block Diagram
Easy BGA 512-Mbit (Dual-Die) Configuration
CE#
Top Param Die
(256-Mbit)
RST#
VCC
VPP
VCCQ
VSS
WP#
OE#
WE#
CLK
ADV#
Bottom Param Die
(256-Mbit)
DQ[15:0]
WAIT
A[MAX:1]
Note:
Amax = VIH selects the Top parameter Die; Amax = VIL selects the Bottom Parameter
Die.
Datasheet
14
Aug 2009
Order Number: 320003-08
