The programmable CRC generator provides
a

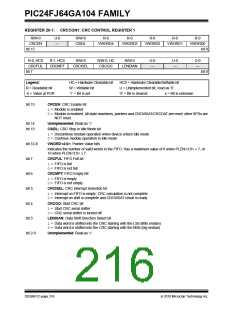

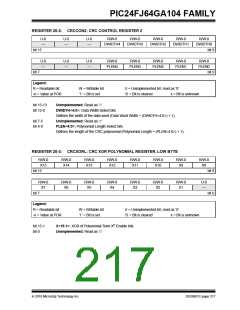

20.0 32-BIT PROGRAMMABLE
CYCLIC REDUNDANCY CHECK
(CRC) GENERATOR
hardware-implemented method of quickly generating
checksums for various networking and security
applications. It offers the following features:
• User-programmable CRC polynomial equation,
up to 32 bits
Note:
This data sheet summarizes the features
of this group of PIC24F devices. It is not
intended to be a comprehensive reference
source. For more information, refer to the
“PIC24F Family Reference Manual”,
Section 41. “32-Bit Programmable
Cyclic Redundancy Check (CRC)”
(DS39729).
• Programmable shift direction (little or big-endian)
• Independent data and polynomial lengths
• Configurable interrupt output
• Data FIFO
A simplified block diagram of the CRC generator is
shown in Figure 20-1. A simple version of the CRC shift
engine is shown in Figure 20-2.
FIGURE 20-1:
CRC BLOCK DIAGRAM
CRCDATH
CRCDATL
Variable FIFO
(4x32, 8x16 or 16x8)
FIFO Empty Event
CRCISEL
2 * FCY Shift Clock
1
0
Shift Buffer
Set CRCIF
0
1
LENDIAN
Shift Complete Event
CRC Shift Engine
CRCWDATH
CRCWDATL
FIGURE 20-2:
CRC SHIFT ENGINE DETAIL
CRCWDATH
CRCWDATL
Read/Write Bus
X(1)
(1)
(1)
(1)
X(2)
X(n)
Shift Buffer
Data
(2)
Bit 0
Bit 1
Bit n
Bit 2
Note 1: Each XOR stage of the shift engine is programmable. See text for details.
2: Polynomial length n is determined by ([PLEN<3:0>] + 1)
