93LC46A/B
3.2
Data In (DI) and Data Out (DO)
3.0

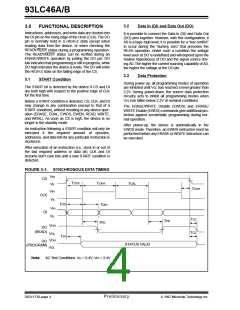

FUNCTIONAL DESCRIPTION
Instructions, addresses, and write data are clocked into
the DI pin on the rising edge of the clock (CLK).The DO
pin is normally held in a HIGH-Z state except when
reading data from the device, or when checking the
READY/BUSY status during a programming operation.
The READY/BUSY status can be verified during an
ERASE/WRITE operation by polling the DO pin; DO
low indicates that programming is still in progress, while
DO high indicates the device is ready.The DO will enter
the HIGH-Z state on the falling edge of the CS.
It is possible to connect the Data In (DI) and Data Out
(DO) pins together. However, with this configuration, if
A0 is a logic-high level, it is possible for a “bus conflict”
to occur during the “dummy zero” that precedes the
READ operation. Under such a condition the voltage
level seen at DO is undefined and will depend upon the
relative impedances of DO and the signal source driv-
ing A0.The higher the current sourcing capability of A0,
the higher the voltage at the DO pin.
3.3
Data Protection
3.1
START Condition
During power-up, all programming modes of operation
are inhibited until Vcc has reached a level greater than
2.2V. During power-down, the source data protection
circuitry acts to inhibit all programming modes when
Vcc has fallen below 2.2V at nominal conditions.
The START bit is detected by the device if CS and DI
are both high with respect to the positive edge of CLK
for the first time.
Before a START condition is detected, CS, CLK, and DI
may change in any combination (except to that of a
START condition), without resulting in any device oper-
ation (ERASE, ERAL, EWDS, EWEN, READ, WRITE,
and WRAL). As soon as CS is high, the device is no
longer in the standby mode.
The ERASE/WRITE Disable (EWDS) and ERASE/
WRITE Enable (EWDS) commands give additional pro-
tection against accidentally programming during nor-
mal operation.
After power-up, the device is automatically in the
EWDS mode. Therefore, an EWEN instruction must be
performed before any ERASE or WRITE instruction can
be executed.
An instruction following a START condition will only be
executed if the required amount of opcodes,
addresses, and data bits for any particular instruction is
clocked in.
After execution of an instruction (i.e., clock in or out of
the last required address or data bit) CLK and DI
become don't care bits until a new START condition is
detected.
FIGURE 3-1: SYNCHRONOUS DATA TIMING
VIH
CS
TCSS
TCKH
TCKL
VIL
TCSH
VIH
CLK
DI
VIL
TDIS
TDIH
VIH
VIL
TCZ
TPD
TPD
VOH
DO
(READ)
TCZ
VOL
VOH
TSV
DO
(PROGRAM)
STATUS VALID
VOL
Note: AC Test Conditions: VIL = 0.4V, VIH = 2.4V
DS21173D-page 4
Preliminary
1997 Microchip Technology Inc.
