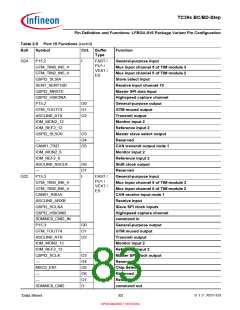

TC39x BC/BD-Step

Pin Definition and Functions: LFBGA-516 Package Variant Pin Configuration

Table 2-8 Port 14 Functions (cont’d)

Ball

Symbol

Ctrl. Buffer

Type

Function

A20

P14.11

SLOW /

PU1 /

VEXT /

General-purpose input

Mux input channel 6 of TIM module 7

Mux input channel 1 of TIM module 5

Mux input channel 1 of TIM module 3

Upstream assynchronous input signal

General-purpose output

GTM muxed output

GTM_TIM7_IN6_2

GTM_TIM5_IN1_4

GTM_TIM3_IN1_9

MSC2_SDI1

P14.11

GTM_TOUT258

—

Reserved

—

Reserved

MSC2_EN2

MSC2_SOP

—

Chip Select

Data output - direct part of the differential signal

Reserved

—

Reserved

B19

P14.12

SLOW /

PU1 /

VEXT /

General-purpose input

Mux input channel 4 of TIM module 6

Mux input channel 4 of TIM module 5

Mux input channel 4 of TIM module 3

Upstream assynchronous input signal

General-purpose output

GTM muxed output

GTM_TIM6_IN4_3

GTM_TIM5_IN4_5

GTM_TIM3_IN4_8

MSC2_SDI0

P14.12

GTM_TOUT261

ASCLIN5_ASCLK

ASCLIN7_ASCLK

—

Shift clock output

Reserved

—

Reserved

QSPI5_SLSO6

—

Master slave select output

Reserved

Data Sheet

V 1.2, 2021-03

OPEN MARKET VERSION
