HistoryChanges from Version 0.4 to Version 0.6
–
–
–
–
–
–
–
–
Change P22.4 from SLOW to FAST
Add HSDPM_BS1 to P22.5
Change P22.5 from SLOW to FAST
Change Symbol from SCU_EMGSTOP_A_RIQ to SCU_EMGSTOP_PORT_A
Add EVADC_G5CH2 to AN50
Add EDSADC_EDS9PB to AN70
Add EDSADC_EDS9NB to AN71
Add Buffer Type to ABGT Symbols
•
Changes in table 'Overload Parameters' of Overload
–
–
Change max value of KOVDN from 6*10-4 to 1*10-4
Change note of KOVDN from 'Overload injected on GPIO non LVDS pad and affecting neighbor slow pads;
-2mA < IIN < 0mA' to 'Overload injected on GPIO non LVDS pad and affecting neighbor slow pads; -5mA
< IIN < 0mA'
–
–
–
Change note of KOVDN from '1.7*10-3' to '3*10-4'
Change max value of KOVDN from 0.3 to 0.5
Change note of KOVDN from 'Overload injected on LVDS pad and affecting neighbor LVDS pads' to
'Overload injected on LVDS TX pad and affecting neighbor LVDS pads'
–
–
Change max value of KOVDP from 5*10-4 to 5*10-3
Change note of KOVDP from 'Overload injected on LVDS pad and affecting neighbor LVDS pads' to
'Overload injected on LVDS TX pad and affecting neighbor LVDS pads'
–
–
–
Change note of KOVDP from '1*10-5' to '1.5*10-3'
Change max value of KOVAN from 1*10-4 to 1*10-5
Change note of KOVAN from ''Analog Inputs overlaid with class slow pads or pull down diagnostics; -1mA <
IIN < 0mA'' to ''Analog Inputs overlaid with class slow pads or pull down diagnostics; -5mA < IIN < 0mA''
–
–
–
–
Change note of KOVAN from '1*10-3' to '1*10-4'
Change note of KOVAP from '1*10-5' to '2*10-5'
Change note of KOVAP from '1*10-4' to '2*10-4'
Add parameter IOUT
•
•
Operating Conditions
–
–
–
Change note of VDDM from 'Upper voltage range' to ''
Change note of VDDM from 'Lower voltage range' to ''
Change note of VEVRSB from 'VEVRSB is bonded together with VEXT supply pin in smaller LQFP packages.' to ''
Changes in table 'PORST Pad' of Standard Pads
–
Change note of HYS from 'non of the neighbor pads are used as output; TTL' to 'non of the neighbor pads
are used as output;TTL (degraded, used for CIF)'
–
–
–
Change min value of HYS from 0.1 * VEXT/FLEX V to 0.055 * VEXT/FLEX V
Change min value of IPDL from |18| µA to |15| µA
Change note of HYS from 'two of the neighbor pads are used as output with driver=strong and edge=sharp;
TTL' to 'two of the neighbor pads are used as output with driver=strong and edge=sharp; TTL (degraded,
used for CIF)'
•

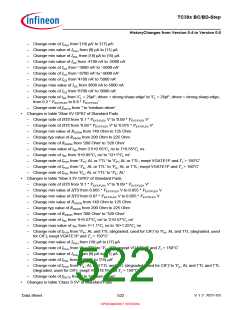

Changes in table 'Fast 5V GPIO' of Standard Pads
–
–
Change note of HYS from '0.1 * VEXT/FLEX V' to '0.09 * VEXT/FLEX V'

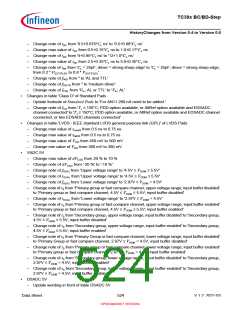

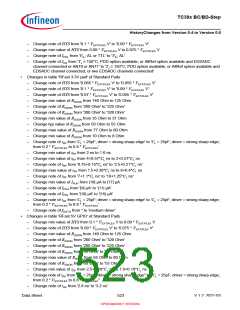

Change min value of HYS from 0.09 * VEXT/FLEX V to 0.075 * VEXT/FLEX V
