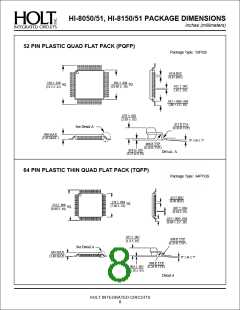

HI-8050/51, HI-8150/51 PACKAGE DIMENSIONS
inches (millimeters)
52 PIN PLASTIC QUAD FLAT PACK (PQFP)
Package Type: 52PQS
.0256 BSC
(0.65 BSC)
.520 ± .010
(13.2 ± .25)
.394 ± .004
(10.00 ± .10)
SQ.
SQ.
.012 ± .002
(.30 ± .05)
.035 +.006/-.004
(.88 +.15/-.10)
.079 ± .002
(2.00 ± .05)
.012 R TYP .
(0.30 R TY P.)
See Detail A
.096 MAX.
(2.45 MAX. )
0° £ Q £ 7°
.008 R TYP.
(0.20 R TYP.)
.010 to .020
(0.25 to 0.50)
DETAIL A
64 PIN PLASTIC THIN QUAD FLAT PACK (TQFP)
Package Type: 64PTQS
Package Type:
.0157 BSC
(0.40 BSC)
.276 ± .004
(7.00 ± .10)
SQ.
.354 ± .008
(9.00 ± .20)
SQ.
.007 ± .004
(0.18 ± .05)
.024 +.006/-.004
(0.60 +.15/-.10)
.055 ± .002
(1.4 ± .05)
.008 R TYP.
(0.20 R TYP.)
See Detail A
.063 MAX.
(1.60 MAX.)
0° £ Q £ 7°
.008 R TYP.
.004 ± .002 (0.20 R TYP.)
(0.10 ± .05)
Detail A
HOLT INTEGRATED CIRCUITS
8
