CCD image sensors
S11510 series

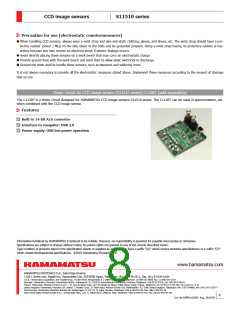

Precaution for use (electrostatic countermeasures)
O When handling CCD sensors, always wear a wrist strap and also anti-static clothing, gloves, and shoes, etc. The wrist strap should have a pro-
tective resistor (about 1 MΩ) on the side closer to the body and be grounded properly. Using a wrist strap having no protective resistor is haz-
ardous because you may receive an electrical shock if electric leakage occurs.
O Avoid directly placing these sensors on a work bench that may carry an electrostatic charge.
O Provide ground lines with the work bench and work floor to allow static electricity to discharge.
O Ground the tools used to handle these sensors, such as tweezers and soldering irons.
It is not always necessary to provide all the electrostatic measures stated above. Implement these measures according to the amount of damage
that occurs.
Driver circuit for CCD image sensor (S11510 series) C11287 [sold separately]
The C11287 is a driver circuit designed for HAMAMATSU CCD image sensors S11510 series. The C11287 can be used in spectrometers, etc.
when combined with the CCD image sensor.
Features
Built-in 14-bit A/D converter
Interface to computer: USB 2.0
Power supply: USB bus power operation
Information furnished by HAMAMATSU is believed to be reliable. However, no responsibility is assumed for possible inaccuracies or omissions.
Specifications are subject to change without notice. No patent rights are granted to any of the circuits described herein.
Type numbers of products listed in the specification sheets or supplied as samples may have a suffix “(X)” which means tentative specifications or a suffix “(Z)”
which means developmental specifications. ©2010 Hamamatsu Photonics K.K.
