Table 4-11: Host Interface Description for Error Status Register
Register Name
Bit
Name
Description
R/W
Default
ERROR_STATUS
Address: 001h
15-11
10
Not Used.
VD_STD_ERR
Video Standard Error Flag. Set HIGH when a
mismatch between the received SMPTE352M
packets and the calculated video standard occurs.
R
0
9
8
FF_CRC_ERR
AP_CRC_ERR
Full Field CRC Error Flag. Set HIGH in SD mode when
a Full Field (FF) CRC mismatch has been detected in
Field 1 or 2.
R
R
0
0
Active Picture CRC Error Flag. Set HIGH in SD mode
when an Active Picture (AP) CRC mismatch has been
detected in Field 1 or 2.
7
6

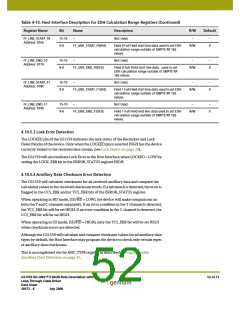

LOCK_ERR
CCS_ERR
Lock Error Flag. Set HIGH whenever the LOCK pin is
LOW (indicating the device not correctly locked).
R
R
0
0
Chroma Checksum Error Flag. Set HIGH when
ancillary data packet checksum error has been
detected in the C channel.
5
4
3
2
1
YCS_ERR
Luma Checksum Error Flag. Set HIGH when ancillary
data packet checksum error has been detected in
the Y channel.
R
R
R
R
R
0
0
0
0
0

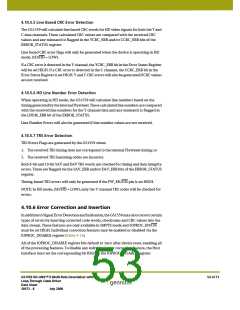

CCRC_ERR
YCRC_ERR
LNUM_ERR
SAV_ERR
Chroma CRC Error Flag. Set HIGH in HD mode when
a mismatch occurs between the calculated and
received CRC values in the C channel.
Luma CRC Error Flag. Set HIGH in HD mode when a
mismatch occurs between the calculated and
received CRC values in the Y channel.
Line Number Error Flag. Set HIGH in HD mode when
a mismatch occurs between the calculated and
received line numbers.
Start of Active Video Error Flag. Set HIGH when TRS
errors are detected in either 8-bit or 10-bit TRS
words. In HD mode only Y channel TRS codes will be
checked. FW_EN/DIS must be set HIGH.
0
EAV_ERR
End of Active Video Error Flag. Set HIGH when TRS
errors are detected in either 8-bit or 10-bit TRS
words. In HD mode only Y channel TRS codes will be
checked. FW_EN/DIS must be set HIGH.
R
0
GS1559 HD-LINX™ II Multi-Rate Deserializer with
Loop-Through Cable Driver
Data Sheet
49 of 71
30572 - 8
July 2008
