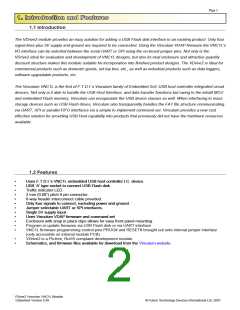

1. In t ro d u c t io n an d F ea tu r es
1.1 Introduction
The VDrive2 module provides an easy solution for adding a USB Flash disk interface to an existing product. Only four
signal lines plus 5V supply and ground are required to be connected. Using the Vinculum VDAP firmware the VNC1L’s
I/O interface can be selected between the serial UART or SPI using the on-board jumper pins. Not only is the
VDrive2 ideal for evaluation and development of VNC1L designs, but also its neat enclosure and attractive quantity
discount structure makes this module suitable for incorporation into finished product designs. The VDrive2 is ideal for
commercial products such as domestic goods, set top box, etc., as well as industrial products such as data loggers,
software upgradable products, etc.
The Vinculum VNC1L is the first of F.T.D.I.’s Vinculum family of Embedded SoC USB host controller integrated circuit
devices. Not only is it able to handle the USB Host Interface, and data transfer functions but owing to the inbuilt MCU
and embedded Flash memory, Vinculum can encapsulate the USB device classes as well. When interfacing to mass
storage devices such as USB Flash drives, Vinculum also transparently handles the FAT file structure communicating
via UART, SPI or parallel FIFO interfaces via a simple to implement command set. Vinculum provides a new cost
effective solution for providing USB Host capability into products that previously did not have the hardware resources
available.
1.2 Features
•
•
•
•
•
•
•
•
•
•
•
•
•
•
½ses F.T.D.I.½s VNC1L em½edded ½½½½ host controller I.C. device.
½½½½ ½½½ type soc½et to connect ½½½½ Flash dis½.
Traffic indicator LED.
2 mm (0.08”) pitch 8 pin connector.
8-way header interconnect ca½le provided.
½nly ½our signals to connect½½ e½cluding power and ground.
½umper selecta½le ½½½T or ½½I inter½aces.
½ingle ½V supply input.
½½½½ ½inc½½½½½ ½D½½½ fir½½½ar½ and co½½½½and ½½t.
Enc½o½½r½ ½ith ½nap in p½ac½ c½ip½ a½½o½½ for ½a½y front pan½½ ½½o½nting.
½½rogra½½ or ½pdat½ fir½½½ar½ via ½SB F½a½h di½k or via ½½RT int½rfac½.
½NC1L fir½½½ar½ progra½½½½ing contro½ pin½ ½½ROG# and RESET# bro½ght o½t onto int½rna½ j½½½p½r int½rfac½
(only accessi½le on internal module ½C½½)
VDrive2 is a ½½-½ree½½ ½oH½ complaint development module.
Sch½½½atic½½½ and fir½½½ar½ fi½½½ avai½ab½½ for do½n½oad fro½½ th½
Vinculum we½site.
VDrive2 Vinculum VNC1L Module
Datasheet Version 0.99
© Future Technology Devices International Ltd. 2007
