Data Sheet — MC68HC908MR32 • MC68HC908MR16

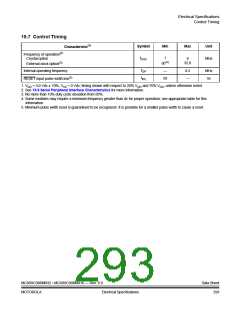

Section 19. Electrical Specifications
19.1 Introduction
This section contains electrical and timing specifications.
19.2 Absolute Maximum Ratings
Maximum ratings are the extreme limits to which the MCU can be exposed without
permanently damaging it.
NOTE:
This device is not guaranteed to operate properly at the maximum ratings. For
guaranteed operating conditions, refer to 19.5 DC Electrical Characteristics.
Characteristic(1)
Symbol
Value
Unit
VDD
Supply voltage
Input voltage
–0.3 to +6.0
V
VSS –0.3 to
VDD +0.3
VIn
VHI
I
V
V
VDD + 4 maximum
Input high voltage
Maximum current per pin
excluding VDD and VSS
±25
mA
TSTG
IMVSS
IMVDD
Storage temperature
–55 to +150
100
°C
mA
mA
Maximum current out of VSS
Maximum current into VDD
100
1. Voltages referenced to VSS
.
NOTE:
This device contains circuitry to protect the inputs against damage due to high
static voltages or electric fields; however, it is advised that normal precautions be
taken to avoid application of any voltage higher than maximum-rated voltages to
this high-impedance circuit. For proper operation, it is recommended that VIn and
VOut be constrained to the range VSS ≤ (VIn or VOut) ≤ VDD. Reliability of operation
is enhanced if unused inputs are connected to an appropriate logic voltage level
(for example, either VSS or VDD).
MC68HC908MR32 • MC68HC908MR16 — Rev. 6.0
MOTOROLA
Data Sheet
289
Electrical Specifications
