XRT86L30
SINGLE T1/E1/J1 FRAMER/LIU COMBO
REV. 1.0.1
FIGURE 88. INTERFACING XRT86L30 RECEIVE TO LOCAL TERMINAL EQUIPMENT USING 16.384MBIT/S, HMVIP
16.384MBIT
/S
,
AND H.100 16.384MBIT/S
XRT86L30
Transmit
RxSER0
Payload
Data Input
Interface
Chn 0
RxSERCLK0 (12/16MHz)
RxSYNC0
RxLineClk0 (2.048MHz)
Terminal
Equipment
Figure 89 shows the waveforms for connecting the Transmit multiplexed high-speed Input Interface block to
local Terminal Equipment at 12.352Mbit/s. Figure 91 shows the waveforms for connecting the Transmit
multiplexed high-speed Input Interface block to local Terminal Equipment for 16.384Mbit/s. Figure 95 shows
the waveforms for connecting the Transmit multiplexed high-speed Input Interface block to local Terminal
Equipment for HMVIP and H.100. Figure 92 shows the waveforms for connecting the Receive multiplexed

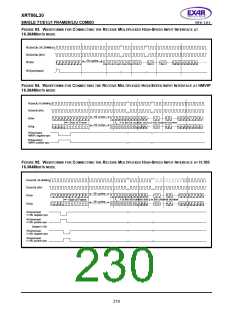

high-speed Input Interface block to local Terminal Equipment for 12.352MHz. Figure 93 shows the waveforms
for connecting the Receive multiplexed high-speed Input Interface block to local Terminal Equipment for
16.384MHz. Figure 94 shows the waveforms for connecting the Receive multiplexed high-speed Input
Interface block to local Terminal Equipment for HMVIP 16.384MHz. Figure 95 shows the waveforms for
connecting the Receive multiplexed high-speed Input Interface block to local Terminal Equipment for H.100
16.384MHz.
FIGURE 89. WAVEFORMS FOR
CONNECTING THE TRANSMIT MULTIPLEXED HIGH-SPEED INPUT INTERFACE AT
12.352MBIT
/S MODE
TxInClk (12.352MHz)
TxInClk (INV)
TxSer
F0 F0 F1 F1 F2 F2 F3 F3 10 X 11 X 12 X 13 X 20 X 21
X
30
X
40
X
50 A0 51 A1 52 A2 53 A3 60 B0 61 B1 62 B2 63 B3
TxSync(input)
217
